Name: Super Clik
Brand: Raytech Gels
Price: 17.28 USD
Availability: InStock

Price

Size

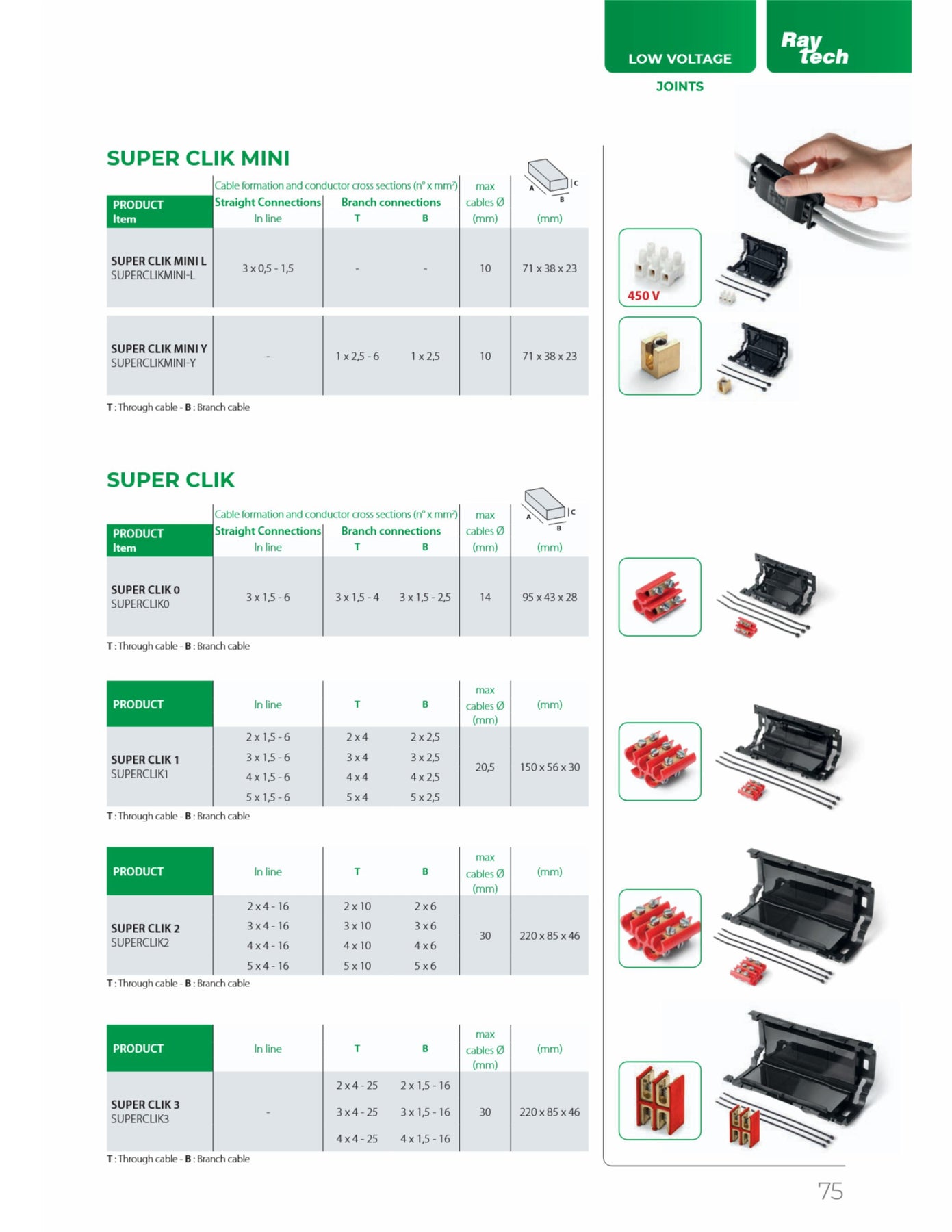

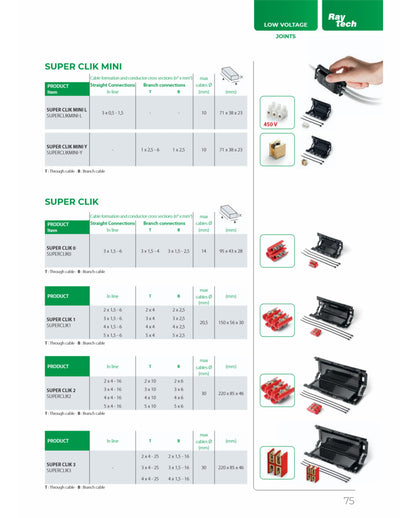

Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)

Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)

Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)

Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)

Quantity

PRODUCT DESCRIPTION BELOW

Fast Nationwide Shipping

Guaranteed Satisfaction

Carbon neutral

Secure payments

[{"id":47671932027099,"title":"Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)","option1":"Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Super Clik - Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)","public_title":"Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)","options":["Super Clik 0 95×43×28 mm (3.74×1.69×1.10 in)"],"price":1728,"weight":113,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040860210","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47671932059867,"title":"Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)","option1":"Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Super Clik - Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)","public_title":"Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)","options":["Super Clik 1 150×56×30 mm (5.91×2.20×1.18 in)"],"price":2592,"weight":113,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040860227","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47672224055515,"title":"Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)","option1":"Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Super Clik - Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)","public_title":"Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)","options":["Super Clik 2 220×85×46 mm (8.66×3.35×1.81 in)"],"price":5460,"weight":113,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040860234","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47672224088283,"title":"Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)","option1":"Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Super Clik - Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)","public_title":"Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)","options":["Super Clik 3 220×85×46 mm (8.66×3.35×1.81 in)"],"price":6036,"weight":113,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040860241","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

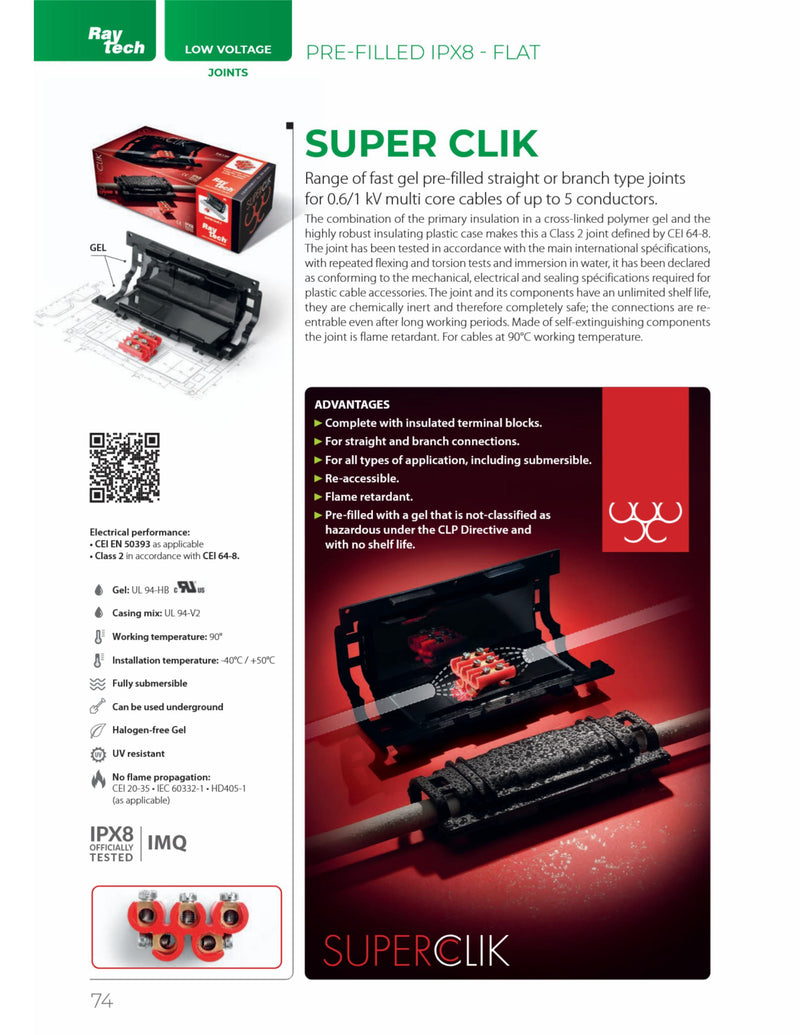

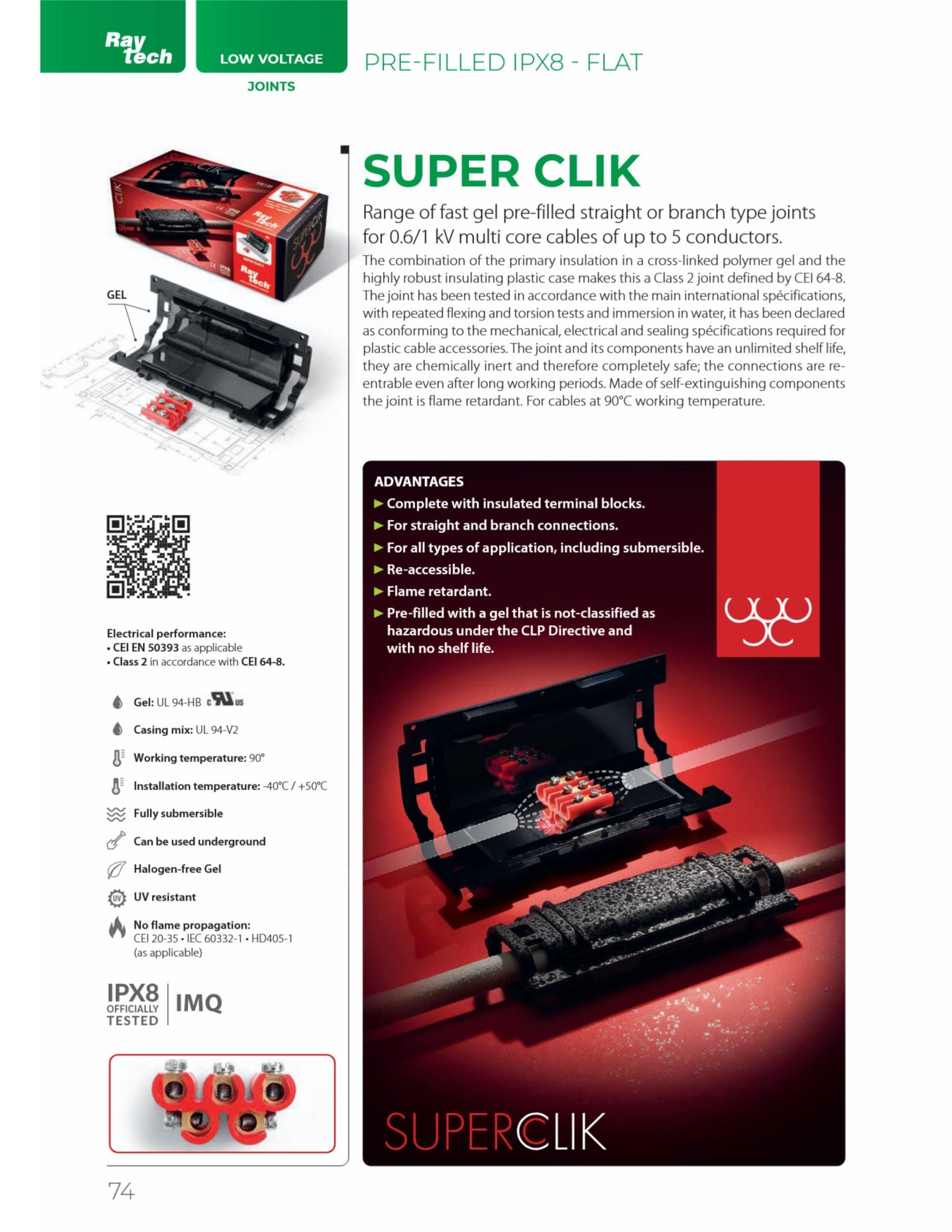

Range of fast gel pre-filled straight or branch type joints for 0.6/1 kV multi core cables of up to 5 conductors.

The combination of the primary insulation in a cross-linked polymer gel and the highly robust insulating plastic case makes this a Class 2 joint defined by CEI 64-8. The joint has been tested in accordance with the main international specifications, with repeated flexing and torsion tests and immersion in water, it has been declared as conforming to the mechanical, electrical and sealing specifications required for plastic cable accessories. The joint and its components have an unlimited shelf life, they are chemically inert and therefore completely safe; the connections are re-entrable even after long working periods. Made of self-extinguishing components the joint is flame retardant. For cables at 90°C working temperature.

Complete with isolated terminal blocks
For straight and branch connections
For all types of application, including submersible
Re-accessible and with no shelf life
Flame retardant
Non toxic and safe

Technical Features:

Electrical performance:
CEI EN 50393
(with testing under water head and water between the cable cores) Class 2 in accordance with CEI 64-8.
No flame propagation:
CEI 20-35 • IEC 60332-1 • HD405-1
(as applicable)
Low smoke and toxic and corrosive gas emissions
Gel: UL 94-HB
Mescola Involucro: UL 94-V2
Operating temperature: 90°
Installation Temperature: -40°C / +50°C
IPX8 (IMQ Officially Tested)

Certifications

View our relevant certification documents below.

IQNET Certification DEKRA Certification Bureau Veritas Certification IMQ Testing Laboratory Recognition
