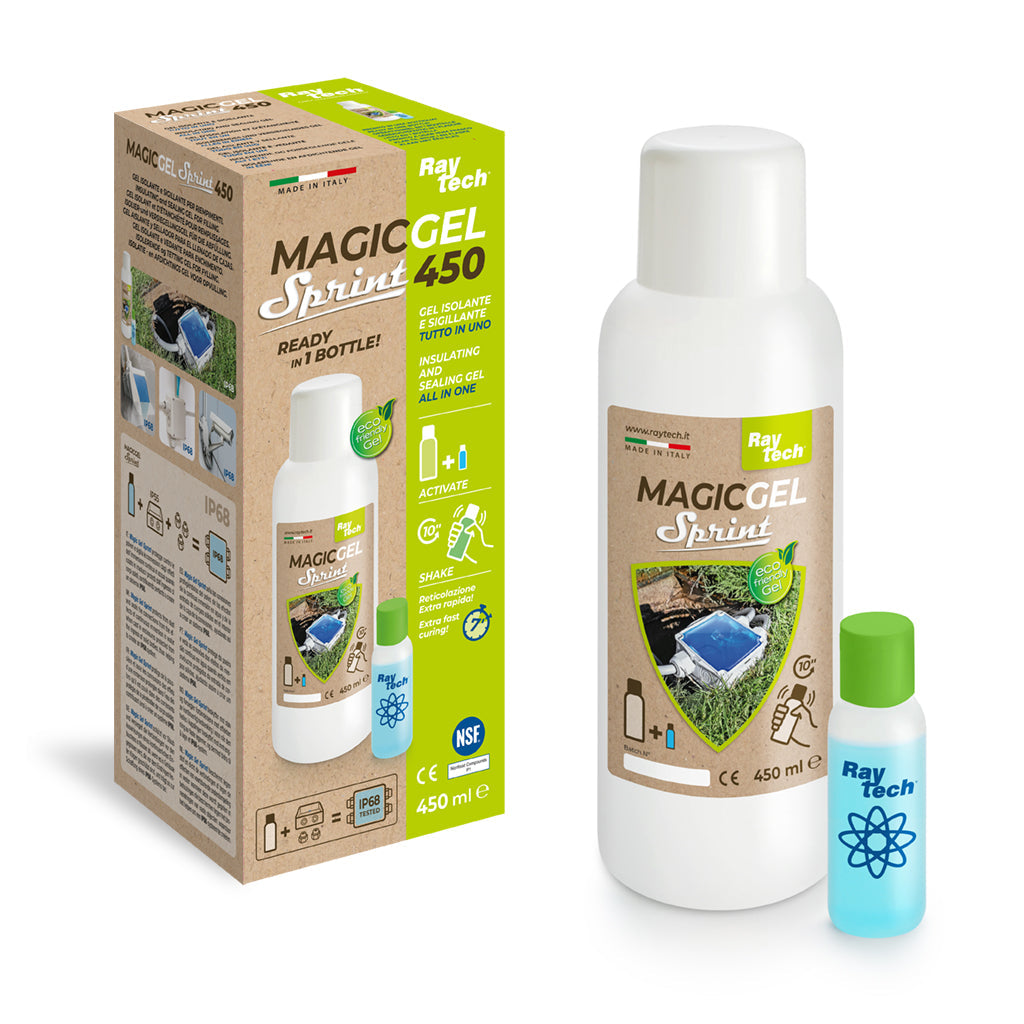

Magic Gel Sprint | Raytech
Magic Gel Sprint, the sealing and insulating filler for the protection of electrical connections, is formulated for an extra fast curing directly into the bottle. It combines the dielectric, sealant and thermal characteristics, that have made Magic Gel the most popular insulating filler for installers since 2005, with ease of use, with a focus on sustainability.
- For POWER CABLES, TELECOM CABLES and ELECTRONIC CIRCUITS.
- Non-toxic, safe and not classified as hazardous under CLP Directive.
- Suitable for installation in salt water (sea) and in chlorinated water (pools).
- For any type of indoor / outdoor and even submerged installation.
- Even suitable for high depths under water.
- For installations up to 1 kV.
- Suitable for high temperatures.
- Removable.
- No shelf life.
- REACH & RoHS Compliant
Technical Features:
Gel: UL 94-HB
Dielectric strength: >23 kV/mm
Cross linking time: fast (about 7 min. at 23°C)
Volume resistivity: >2 . 1015 Ω cm
Working temperature: -60°C / +200°C
Overload temperature for short periods: up to 250°C
Stabilised for: mould – UV
Degree of protection: IP68 (in proper casings)

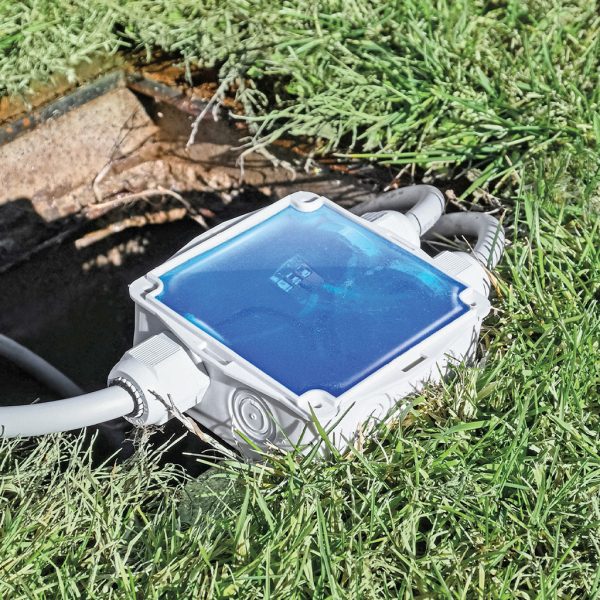

Magic Gel Sprint protects against dust and seals the connections from the effects of continuous immersion in water when it is poured into enclosures protected from the ingress of solid bodies.
Certifications
View our relevant certification documents below.
If you have time-sensitive requirements, we recommend selecting a UPS service at checkout. UPS generally offers more consistent transit performance, while USPS transit times can vary.
Orders are processed within 1–2 business days, with most orders placed before 2 PM EST shipping the same day. We offer a full range of USPS and UPS shipping options, including expedited and next-day delivery for urgent requirements.
Product Selection Guide
Choose the Right Raytech Product
Use this guide to compare Raytech waterproof electrical protection products by application, serviceability, and installation method.
General dielectric gel
Magic Gel
Best for: general waterproof potting and electrical insulation.
Choose Magic Gel when you need a dielectric gel for filling an enclosure, junction box, or electrical connection while keeping future access possible.
Reusable gel protection
Magic Power Gel
Best for: reusable waterproof protection.
Choose Magic Power Gel when future access and reusability matter. It is a strong option when the connection may need to be opened and resealed later.
Gel-rubber protection
Techno Gelgum
Best for: vibration damping and mechanical hold.
Choose Techno Gelgum when the connection is exposed to movement, vibration, mechanical stress, or demanding submerged conditions. Even suitable for high depths under water.
Flexible rubber compound
Magic Rubber
Best for: stronger mechanical structure.
Choose Magic Rubber when you need more structure than a soft gel, but do not want to permanently encapsulate the connection with hard epoxy.
Fast-curing dielectric gel
Magic Gel Sprint
Best for: fast curing waterproof potting and electrical insulation.
Choose Magic Gel Sprint when you need a re-enterable dielectric gel with a faster curing time for quicker installations or faster return to service.
Transparent / UV-resistant gel
Ray Gel
Best for: transparent or UV-resistant waterproof protection.
Choose Ray Gel when you need a low-viscosity dielectric gel with transparent or UV-resistant protection for electrical connections, junction boxes, or installations exposed to UV.
Cartridge gel
Wonder Gel
Best for: overhead and hard-to-reach junction boxes.
Choose Wonder Gel when you need a ready-to-use cartridge gel for overhead, vertical, or hard-to-reach junction boxes where pouring is difficult or not practical.
Prefilled connector boxes
Prefilled Gel Boxes
Best for: wire connectors and terminal blocks.
Choose prefilled gel boxes when you want a ready-to-use solution for protecting wire connectors or terminal blocks without mixing, pouring, or curing.
