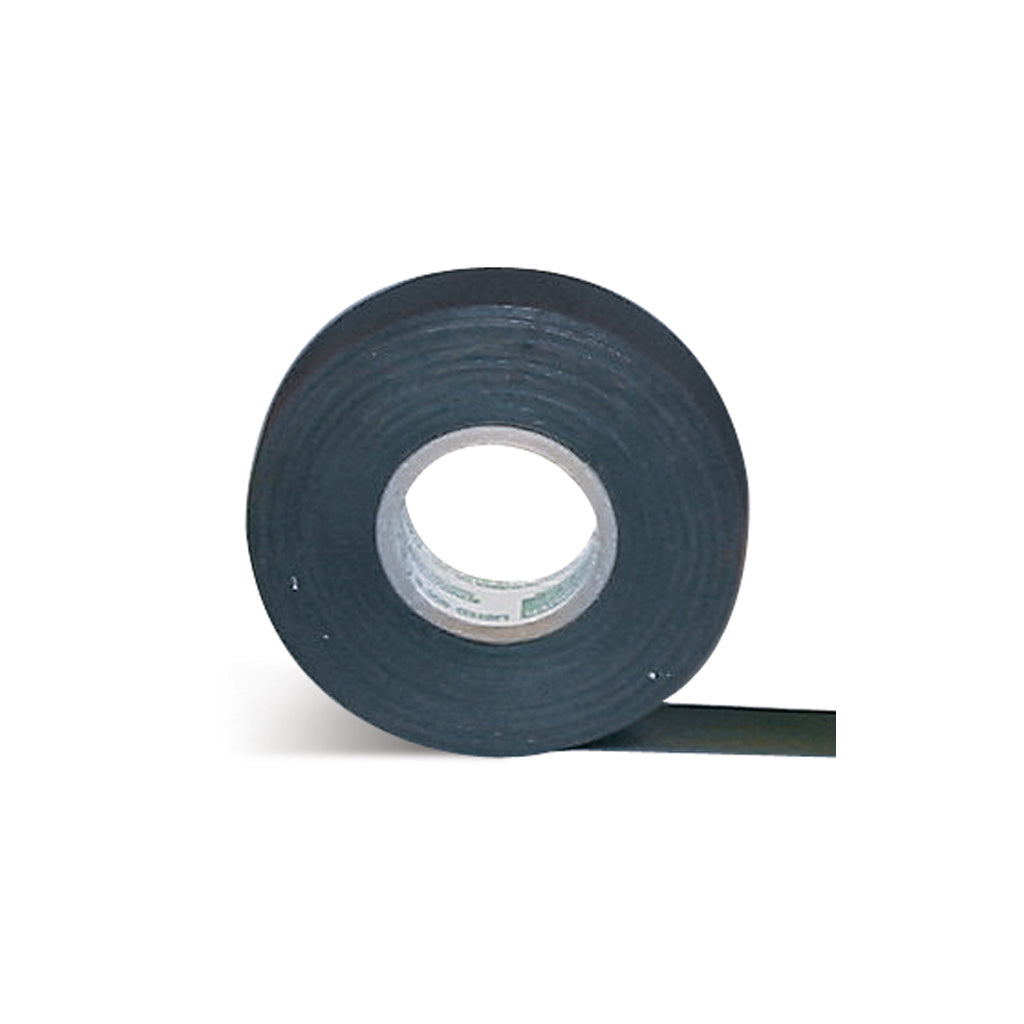

This rubber self-amalgamating low voltage tape (0.6/1 kV)is used for insulating and sealing low voltage electrical joints. It amalgamates rapidly, adapting itself to the product underneath, forming a solid unit.The joints must be protected with a PVC tape. The characteristics remain unchanged with time.
|
Product Raytech 23 BT |
Color Black |
Width 19 mm |
Thickness 0.76 mm |
Length 6.7 m |
|
Property Breaking Strength (tensile) Elongation at break Amalgamation ability Overload temperature Operating temperature Dielectric strength |
Test Method ASTM-D-4325 ASTM-D-4325 ASTM-D-4325 ASTM-D-4388 ASTM-D-4388 ASTM-D-4325 |
Typical Values 1.8 MPa min 300 % min 2.0 mm 100°C 90°C 20 kV/mm min |
If you have time-sensitive requirements, we recommend selecting a UPS service at checkout. UPS generally offers more consistent transit performance, while USPS transit times can vary.
Orders are processed within 1–2 business days, with most orders placed before 2 PM EST shipping the same day. We offer a full range of USPS and UPS shipping options, including expedited and next-day delivery for urgent requirements.
Use this guide to compare Raytech waterproof electrical protection products by application, serviceability, and installation method.
Best for: general waterproof potting and electrical insulation.
Choose Magic Gel when you need a dielectric gel for filling an enclosure, junction box, or electrical connection while keeping future access possible.
Best for: reusable waterproof protection.
Choose Magic Power Gel when future access and reusability matter. It is a strong option when the connection may need to be opened and resealed later.
Best for: vibration damping and mechanical hold.
Choose Techno Gelgum when the connection is exposed to movement, vibration, mechanical stress, or demanding submerged conditions. Even suitable for high depths under water.
Best for: stronger mechanical structure.
Choose Magic Rubber when you need more structure than a soft gel, but do not want to permanently encapsulate the connection with hard epoxy.
Best for: fast curing waterproof potting and electrical insulation.
Choose Magic Gel Sprint when you need a re-enterable dielectric gel with a faster curing time for quicker installations or faster return to service.
Best for: transparent or UV-resistant waterproof protection.
Choose Ray Gel when you need a low-viscosity dielectric gel with transparent or UV-resistant protection for electrical connections, junction boxes, or installations exposed to UV.
Best for: overhead and hard-to-reach junction boxes.
Choose Wonder Gel when you need a ready-to-use cartridge gel for overhead, vertical, or hard-to-reach junction boxes where pouring is difficult or not practical.
Best for: wire connectors and terminal blocks.
Choose prefilled gel boxes when you want a ready-to-use solution for protecting wire connectors or terminal blocks without mixing, pouring, or curing.
