Name: IP68/IP69K Waterproof Gel Cable Junction Box with Lever Connectors – Submersible Electrical Wire Connector for Underground & Outdoor Lighting (Raytech Little Joint Easy)
Brand: Raytech Gels
Price: 12.13 USD
Availability: InStock

IP68/IP69K Waterproof Gel Cable Junction Box with Lever Connectors – Submersible Electrical Wire Connector for Underground & Outdoor Lighting (Raytech Little Joint Easy)

Price

Size

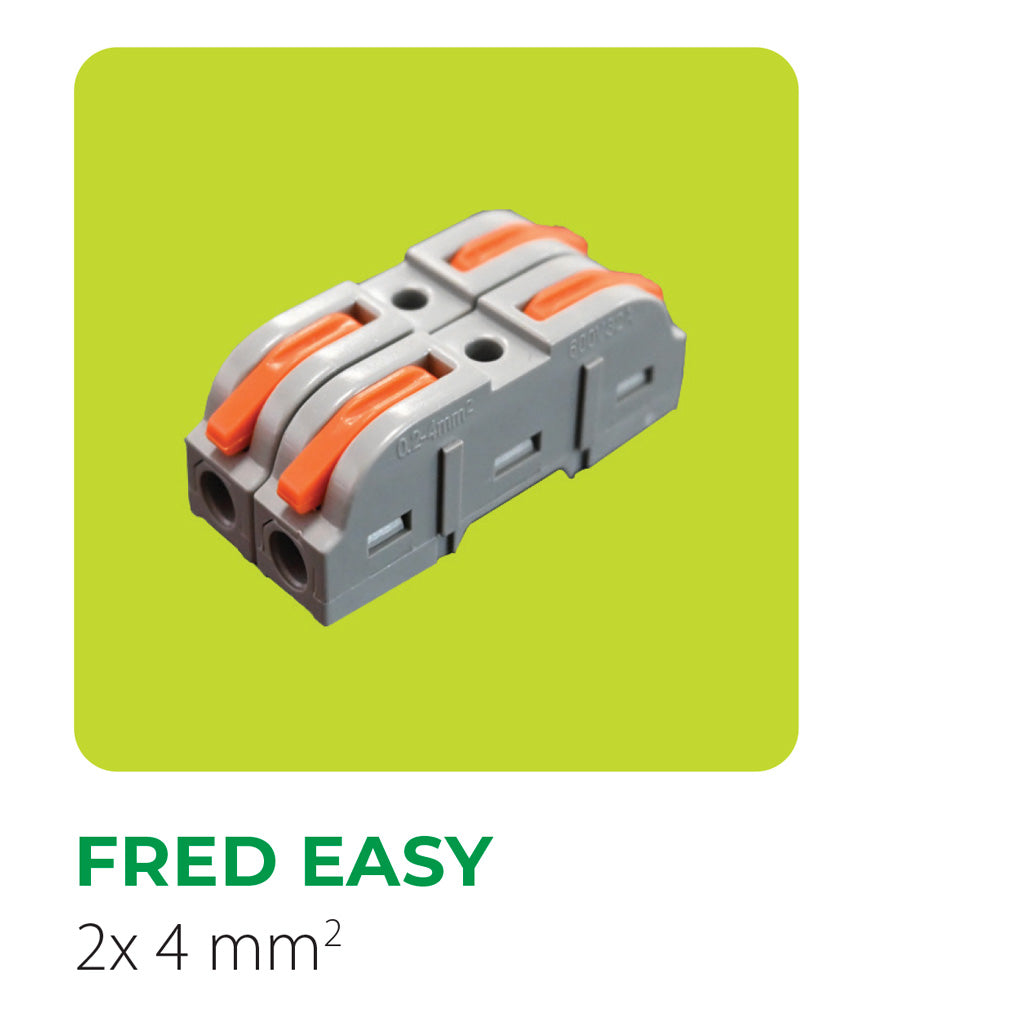

2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)

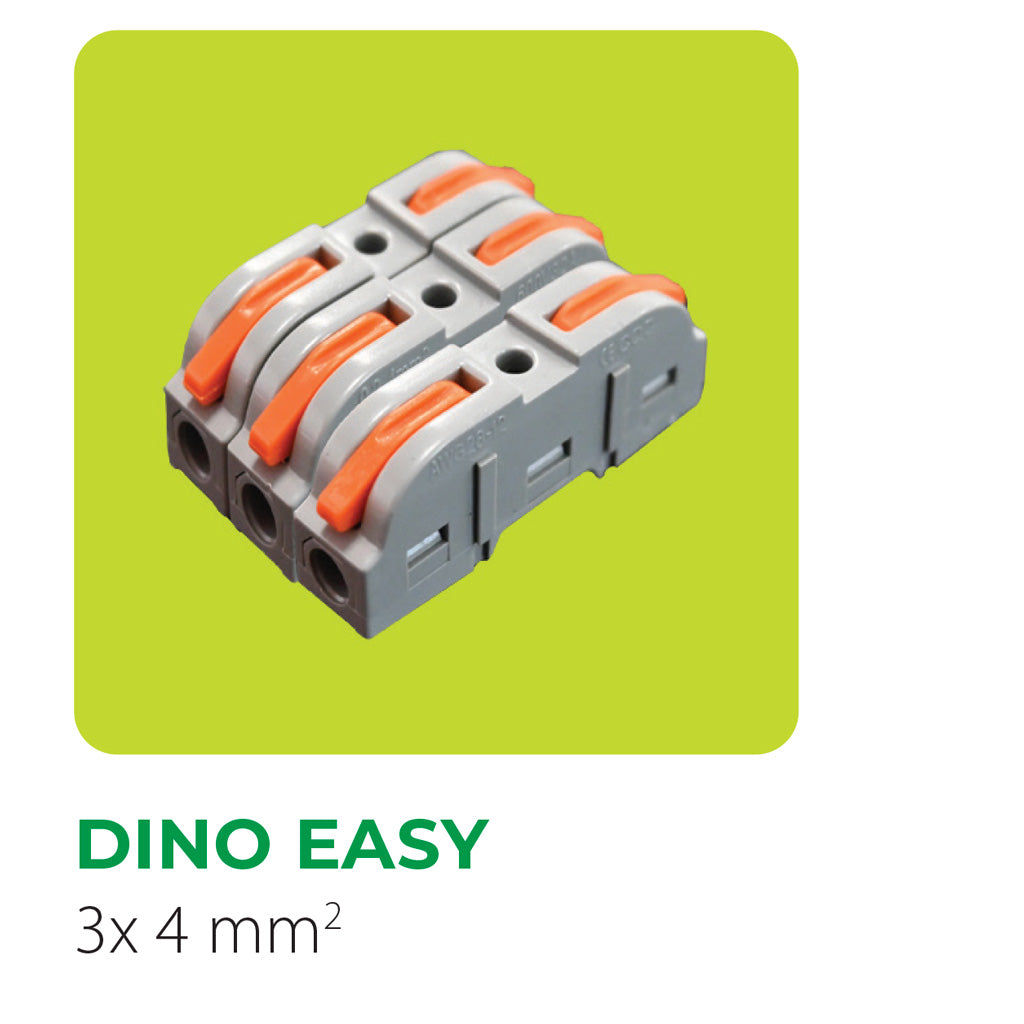

3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)

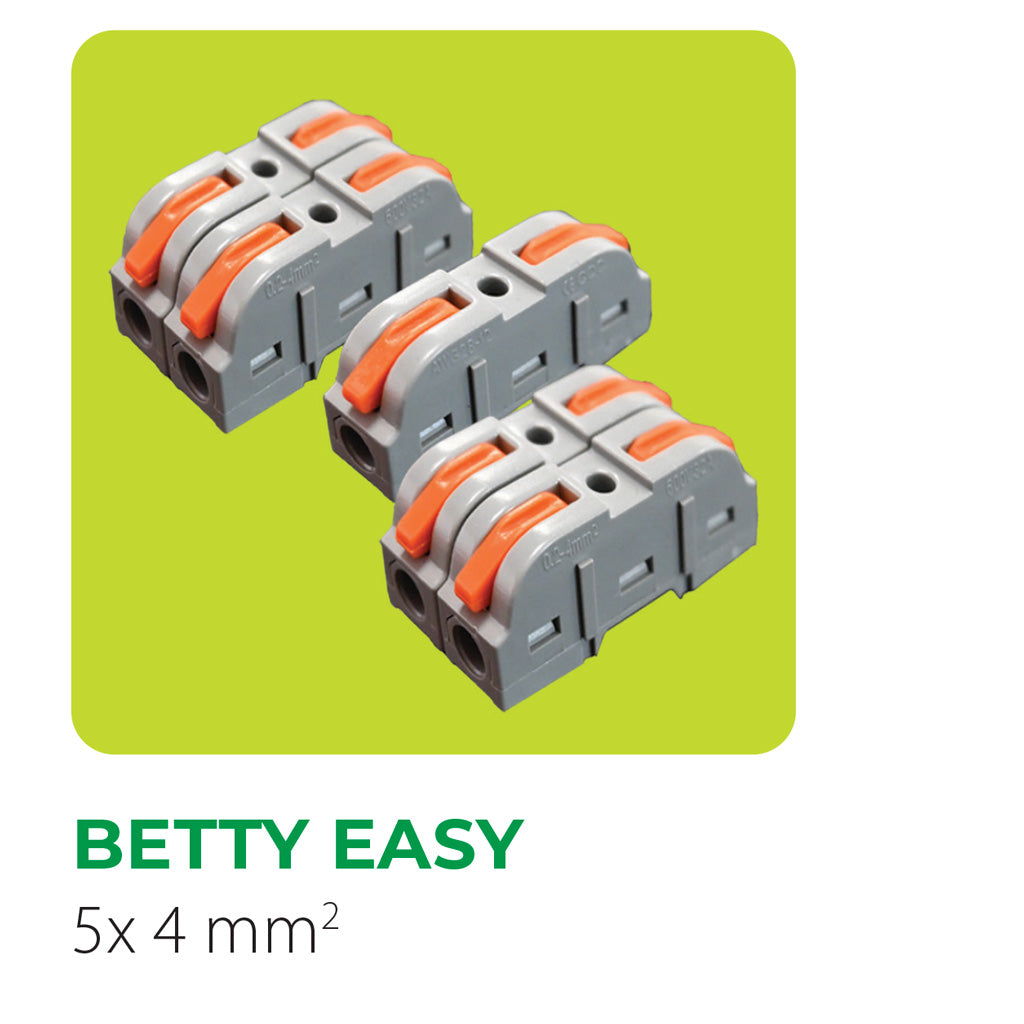

5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)

Quantity

PRODUCT DESCRIPTION BELOW

Fast Nationwide Shipping

Guaranteed Satisfaction

Carbon neutral

Secure payments

[{"id":48378733363419,"title":"2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)","option1":"2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":52180107952347,"product_id":9186852176091,"position":4,"created_at":"2026-03-16T16:18:57-04:00","updated_at":"2026-03-16T16:18:59-04:00","alt":null,"width":1024,"height":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-FRED.jpg?v=1773692339","variant_ids":[48378733363419]},"available":true,"name":"IP68\/IP69K Waterproof Gel Cable Junction Box with Lever Connectors – Submersible Electrical Wire Connector for Underground \u0026 Outdoor Lighting (Raytech Little Joint Easy) - 2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)","public_title":"2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)","options":["2-Wire IP68 Waterproof Gel Junction Box (Fred Easy)"],"price":1213,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040862535","featured_media":{"alt":null,"id":42031735013595,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-FRED.jpg?v=1773692339"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48378733396187,"title":"3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)","option1":"3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":52180108017883,"product_id":9186852176091,"position":2,"created_at":"2026-03-16T16:18:57-04:00","updated_at":"2026-03-16T16:28:25-04:00","alt":null,"width":1024,"height":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-DINO.jpg?v=1773692905","variant_ids":[48378733396187]},"available":true,"name":"IP68\/IP69K Waterproof Gel Cable Junction Box with Lever Connectors – Submersible Electrical Wire Connector for Underground \u0026 Outdoor Lighting (Raytech Little Joint Easy) - 3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)","public_title":"3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)","options":["3-Wire IP68 Waterproof Gel Junction Box (Dino Easy)"],"price":2425,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040862542","featured_media":{"alt":null,"id":42031735079131,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-DINO.jpg?v=1773692905"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48378733428955,"title":"5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)","option1":"5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":52180108050651,"product_id":9186852176091,"position":3,"created_at":"2026-03-16T16:18:57-04:00","updated_at":"2026-03-16T16:28:25-04:00","alt":null,"width":1024,"height":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-Betty.jpg?v=1773692905","variant_ids":[48378733428955]},"available":true,"name":"IP68\/IP69K Waterproof Gel Cable Junction Box with Lever Connectors – Submersible Electrical Wire Connector for Underground \u0026 Outdoor Lighting (Raytech Little Joint Easy) - 5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)","public_title":"5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)","options":["5-Wire IP68 Waterproof Gel Junction Box (Betty Easy)"],"price":2863,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8050040862559","featured_media":{"alt":null,"id":42031735111899,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/raytechgels.com\/cdn\/shop\/files\/LittleJoint-EASY-Betty.jpg?v=1773692905"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Raytech Little Joint Easy IP68/IP69K Gel Cable Junction Box is a compact waterproof electrical connector designed for outdoor, underground, and submersible cable connections. Pre-filled with non-hazardous insulating gel, this ready-to-install waterproof junction box provides long-term protection against water, moisture, dust, and environmental exposure.

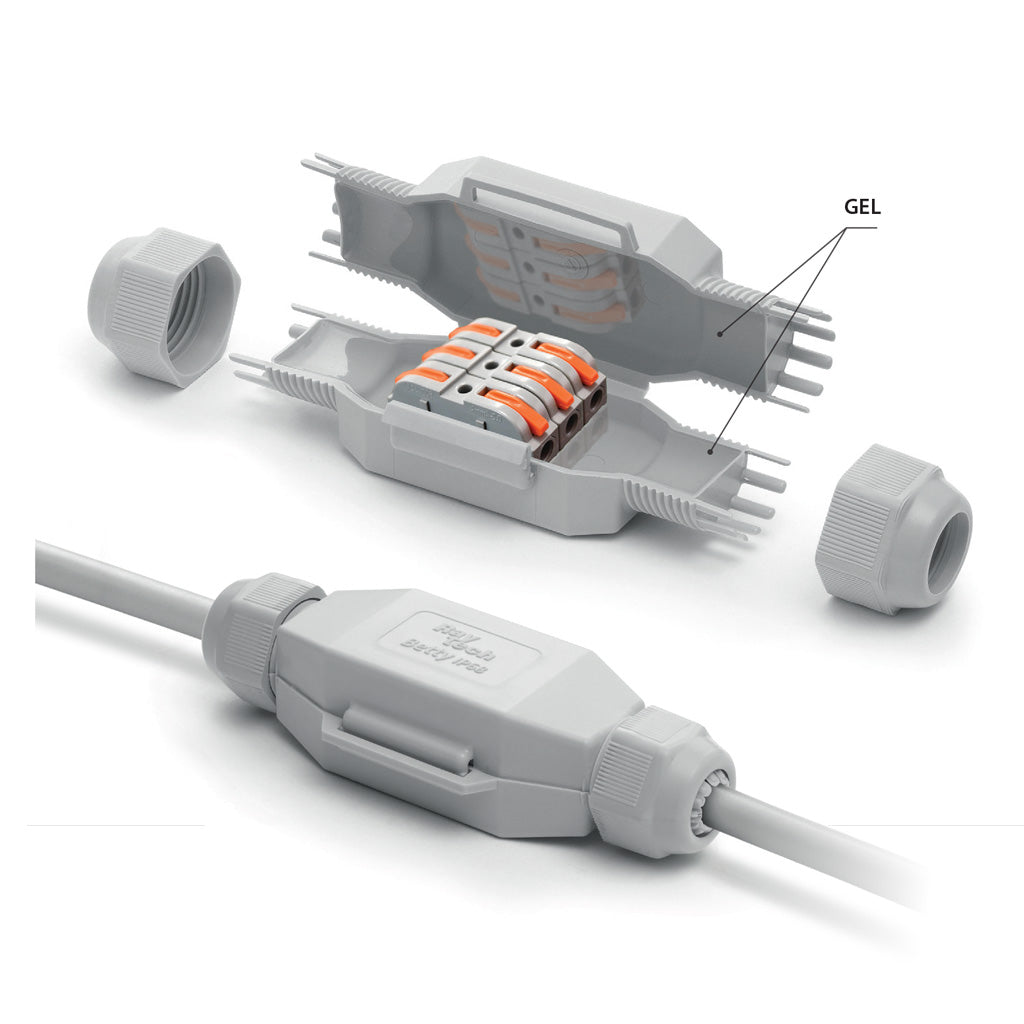

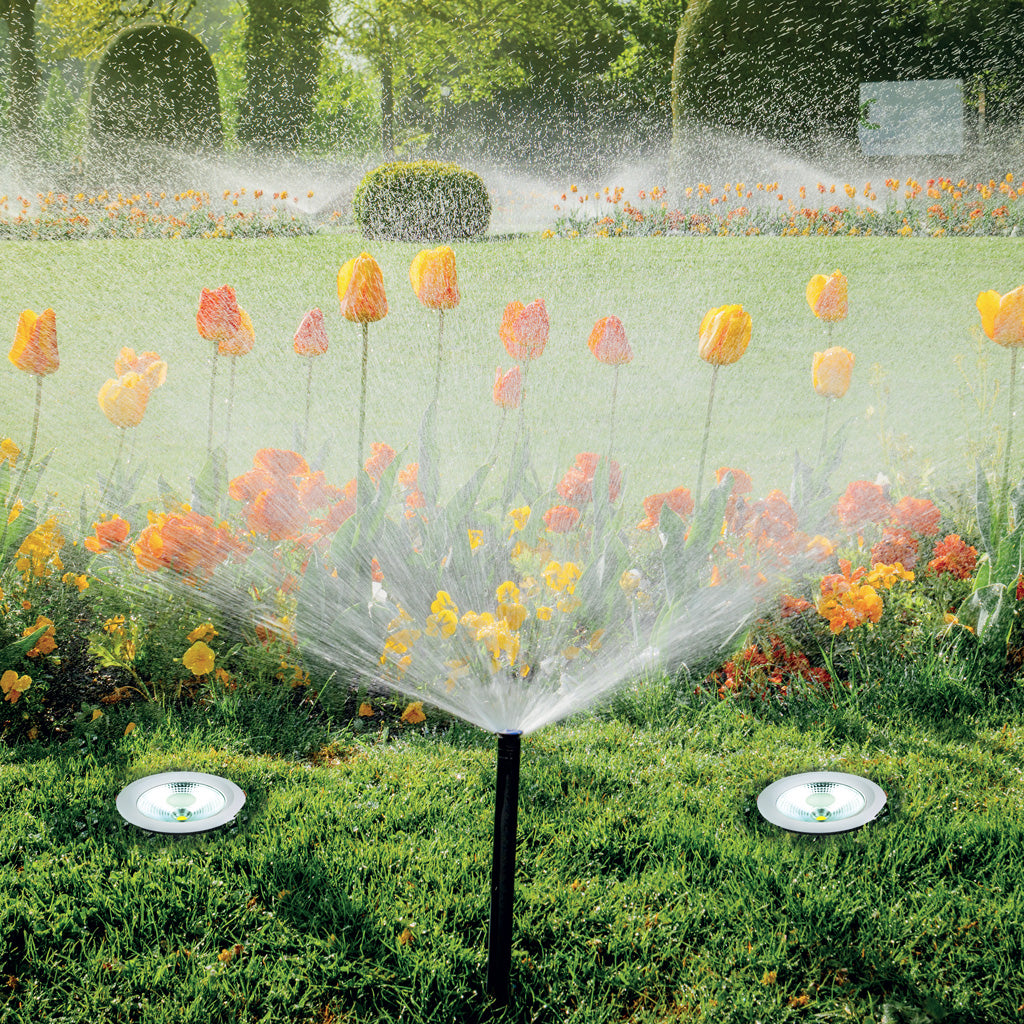

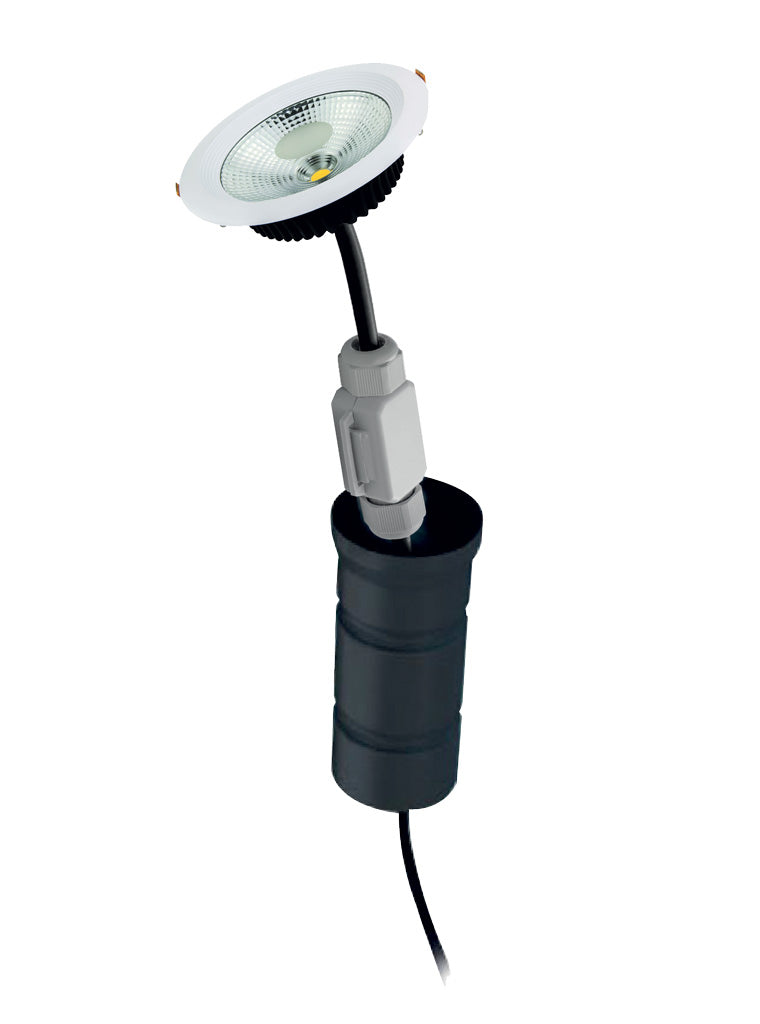

Designed with integrated cable glands and lever connectors, the Little Joint Easy creates a secure electrical connection while locking the cable in place, making it ideal for garden lighting, landscape lighting, outdoor wiring, stair lighting, pedestrian crossings, and harsh installation environments.

The re-enterable gel technology allows the joint to be opened for maintenance and reused without replacing the insulation material.

Key Features

IP68 / IP69K waterproof electrical junction box
Gel-filled cable joint for complete environmental sealing
Pre-filled insulating gel with no shelf life

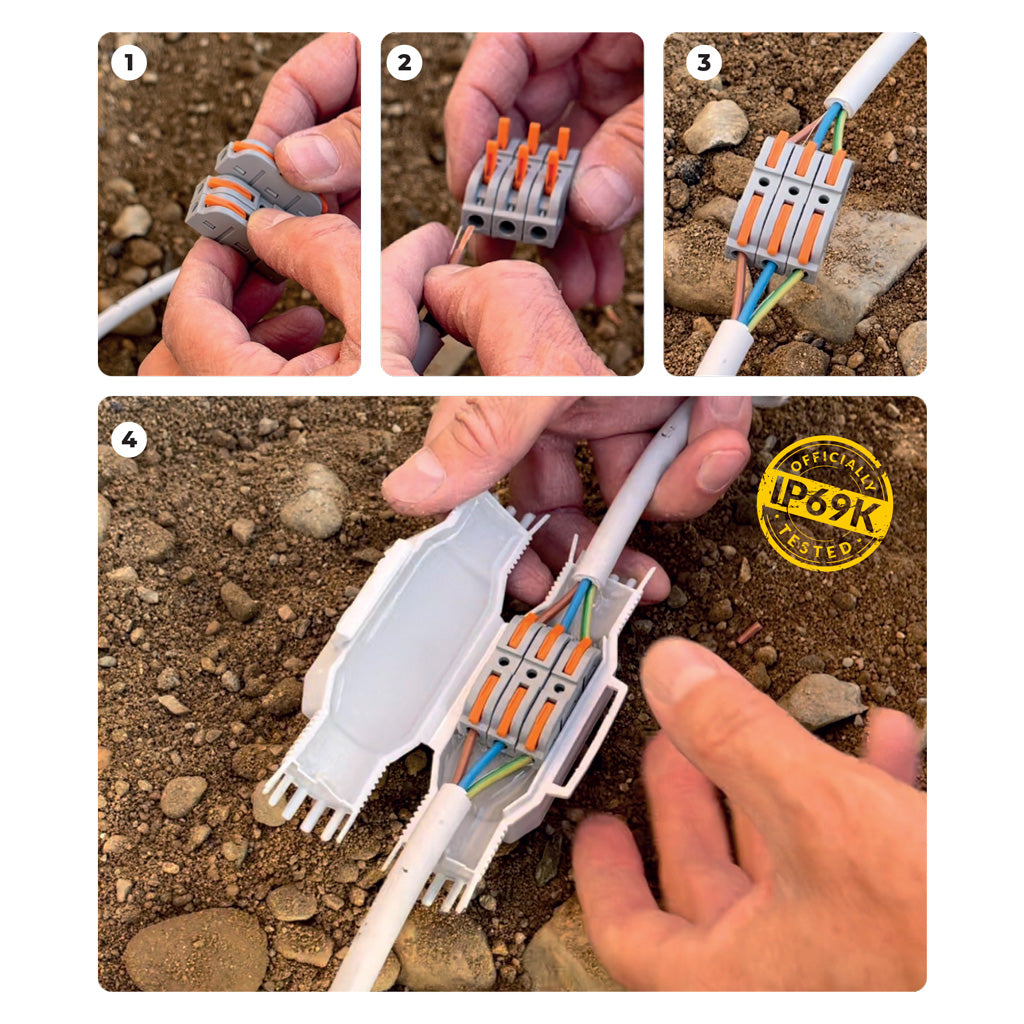

Lever connectors for fast wire connections
Compact ready-to-install design
Re-enterable for maintenance and reuse
Integrated cable glands lock the cable in place
Fully submersible and suitable for underground installation
Halogen-free insulating gel
UV resistant for outdoor installations
Self-extinguishing and fire resistant materials

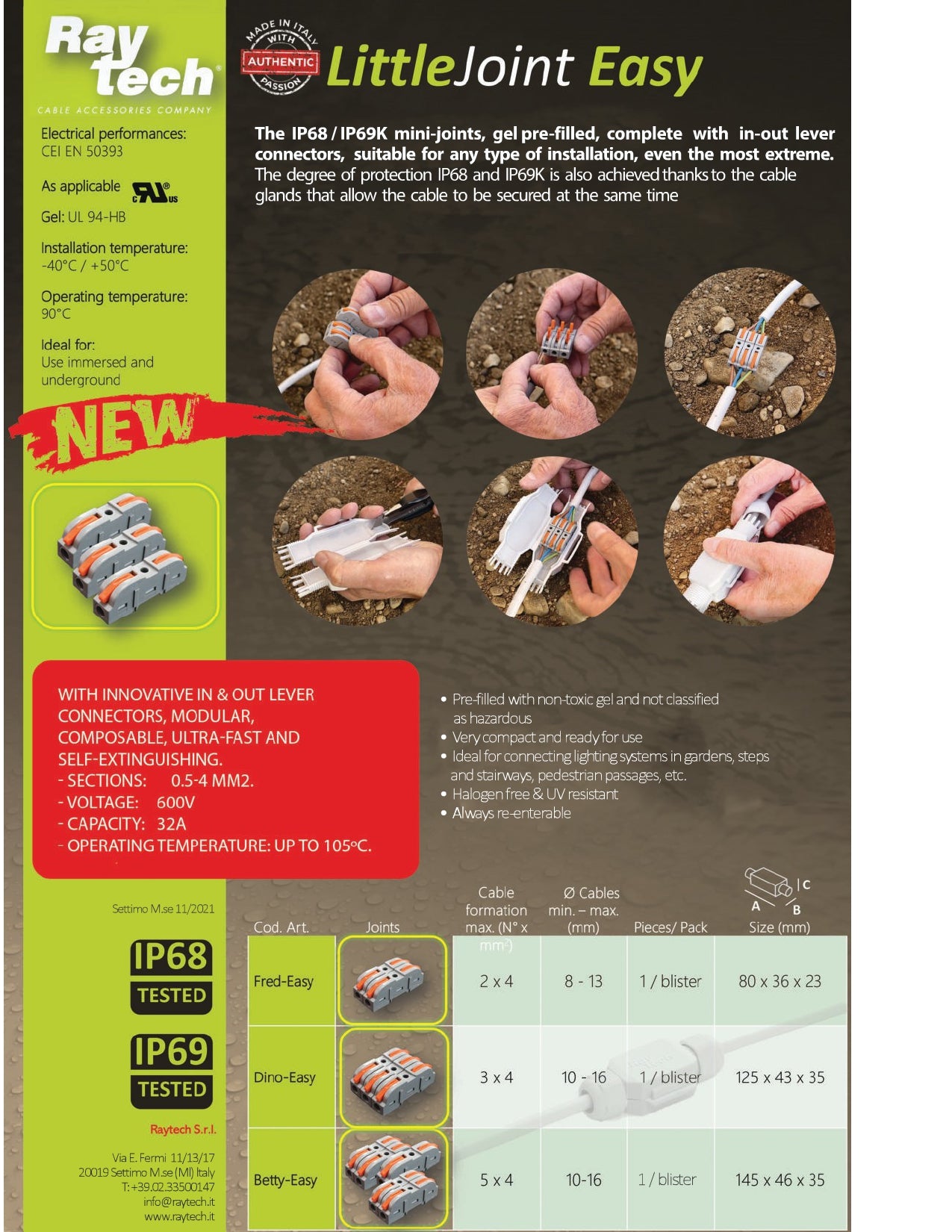

Electrical Specifications

Rated up to 600V
Maximum current 32A
Cable cross section 0.5 – 4 mm²
Operating temperature up to 90°C
Installation temperature -40°C to +50°C
Glow Wire Flammability Index 960°C

Typical Applications

Landscape lighting connections
Garden and pathway lighting wiring

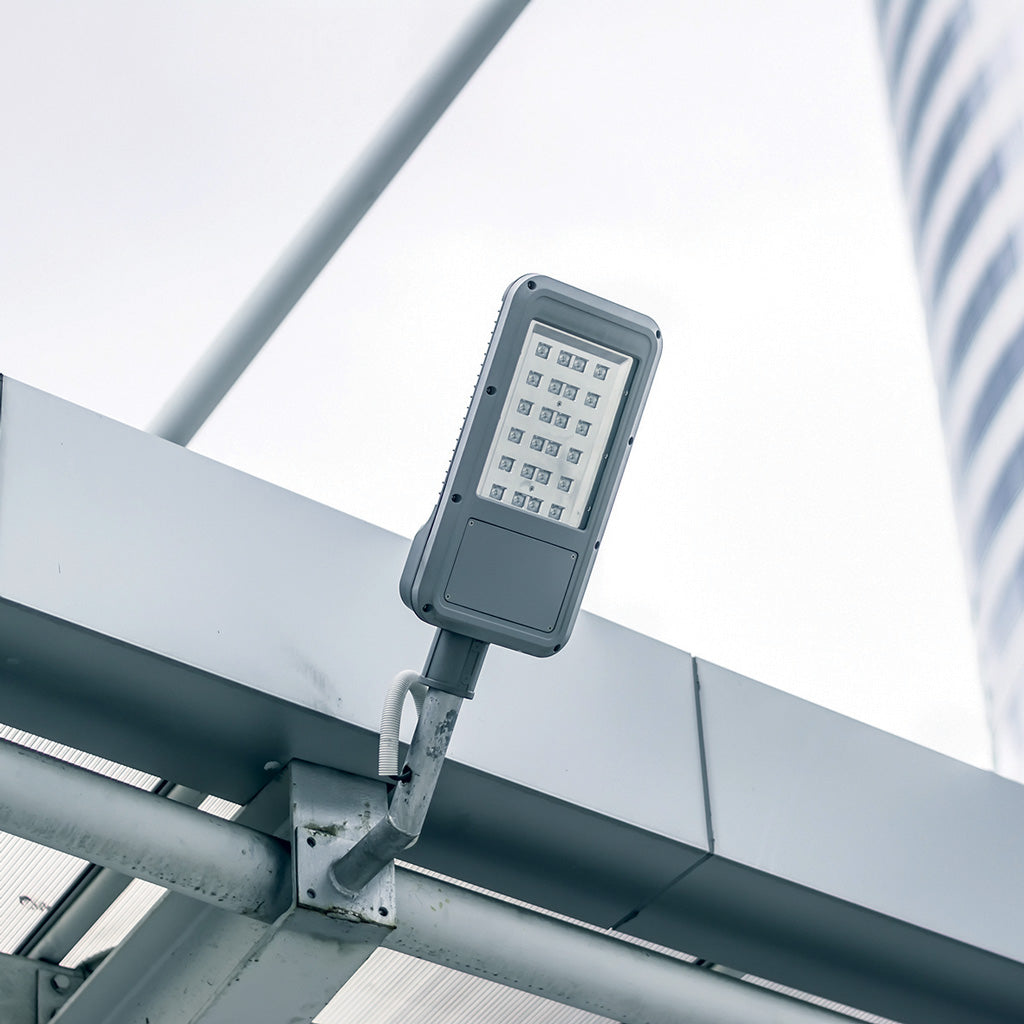

Outdoor LED lighting systems
Underground electrical cable splices
Pedestrian crossing lighting
Stair and step lighting installations
Waterproof cable repair connections

Why Use Gel-Filled Cable Joints?

Unlike traditional junction boxes, gel insulated cable connectors remain flexible, waterproof, and re-enterable, allowing technicians to inspect, modify, or repair wiring without replacing the entire joint.

The Little Joint Easy waterproof cable connector provides professional-grade electrical protection for harsh environments, ensuring long-term reliability in outdoor and underground installations.
