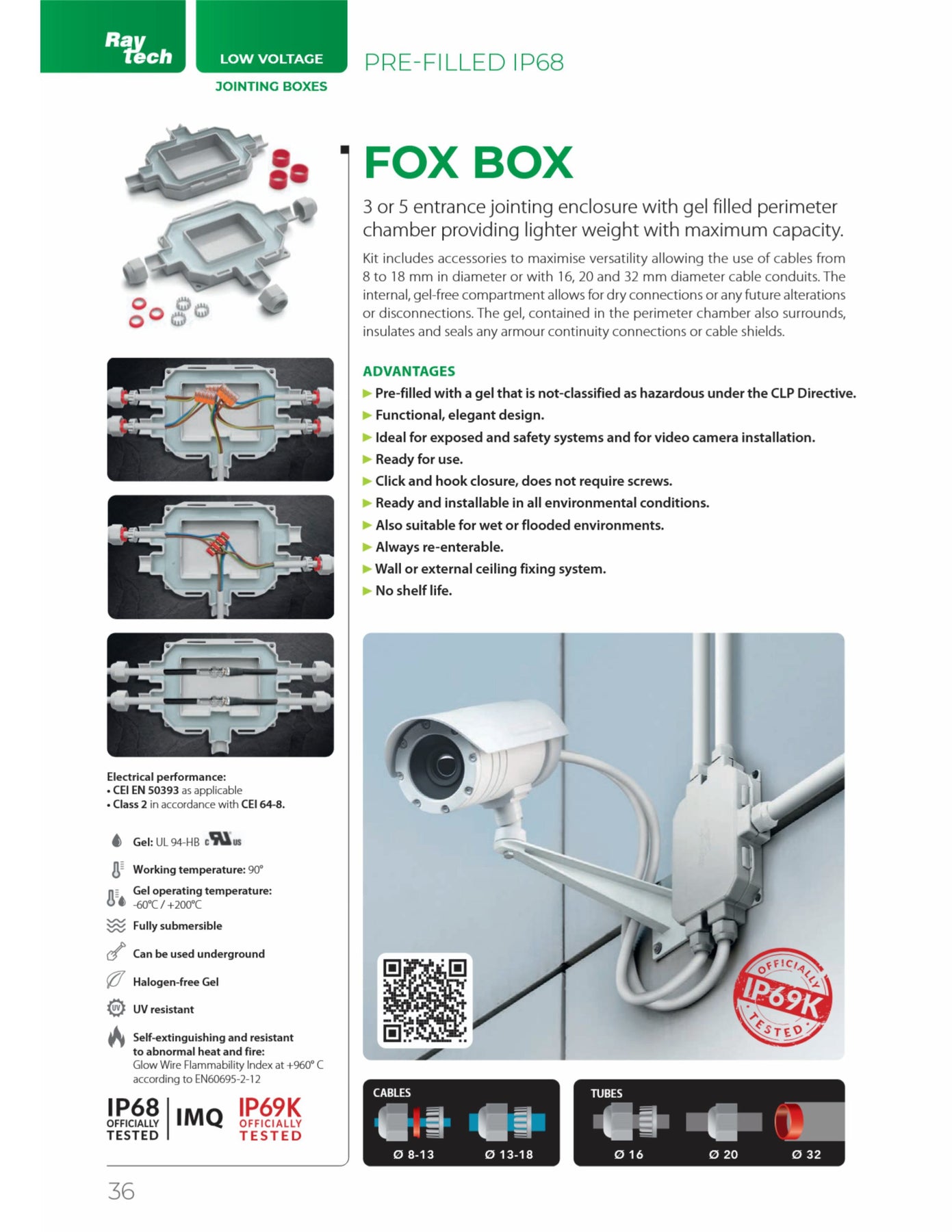

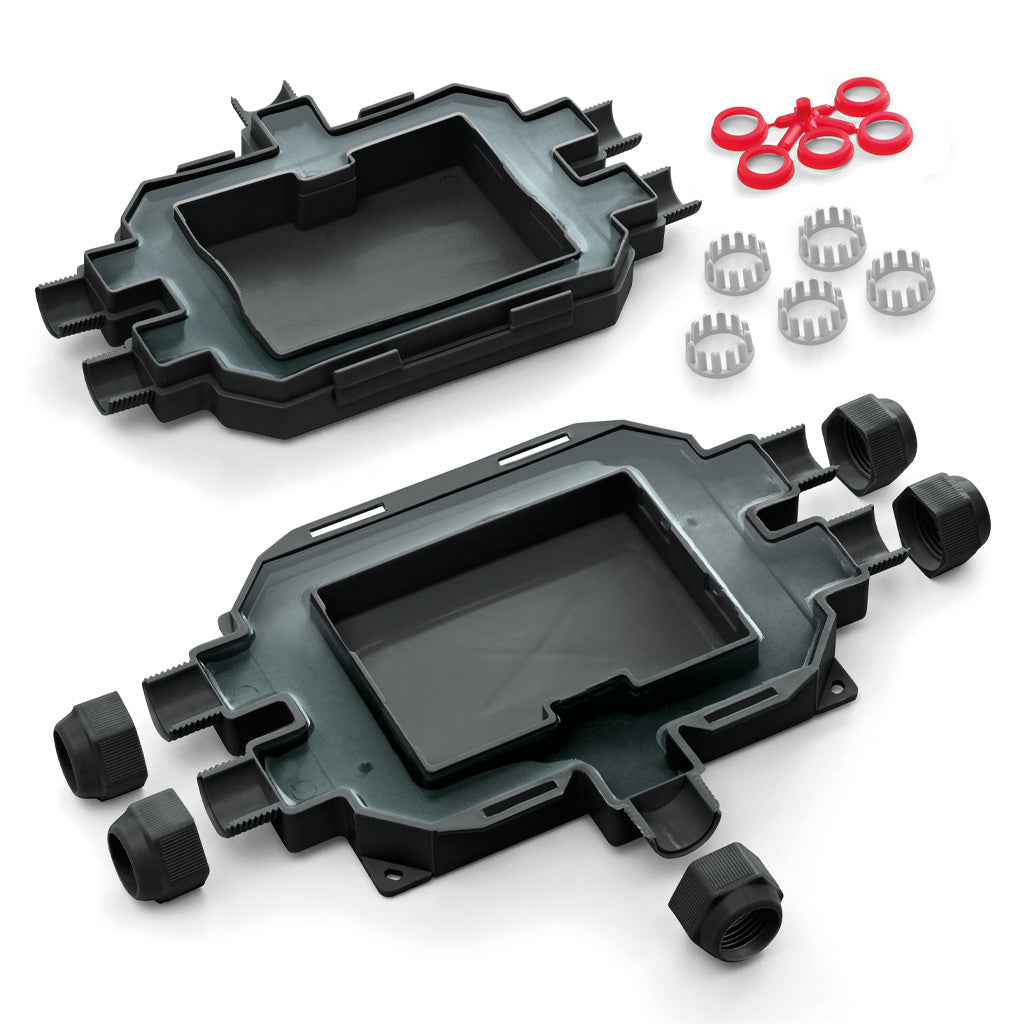

3 or 5 entrance jointing enclosure with gel filled perimeter chamber providing lighter weight with maximum capacity.

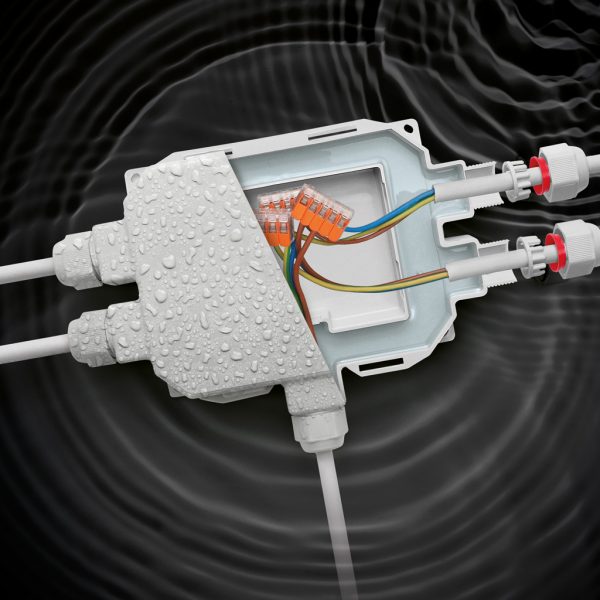

Kit includes accessories to maximize versatility allowing the use of cables from 6 to 18 mm in diameter or with 16, 20 and 32 mm diameter cable conduits. The internal, gel-free compartment allows for dry connections or any future alterations or disconnections. The gel, contained in the perimeter chamber also surrounds, insulates and seals any armor continuity connections or cable shields.- Functional, elegant design
- Ideal for exposed and safety systems and for video camera installation
- Ready for use
- Click and hook closure, does not require screws
- Ready and installable in all environmental conditions
- Also suitable for wet or flooded environments
- No shelf life
- Always re-enterable
- Wall or external ceiling fixing system
- Halogen free & UV resistant
Technical Features:
Electrical performance: CEI EN 50393
as applicable
Gel: UL 94-HB
Halogen free:
according to CEI EN 50267 2-2
Self-extinguishing and resistant to abnormal heat and fire:
Glow wire test a +960°C according to EN 60695-2-11
Operating Temperature: 90°
Gel operating temperature:
-60°C / +200°C
Degree of protection:
IP68 (IMQ Officially Tested)
IP69K (Officially Tested)
