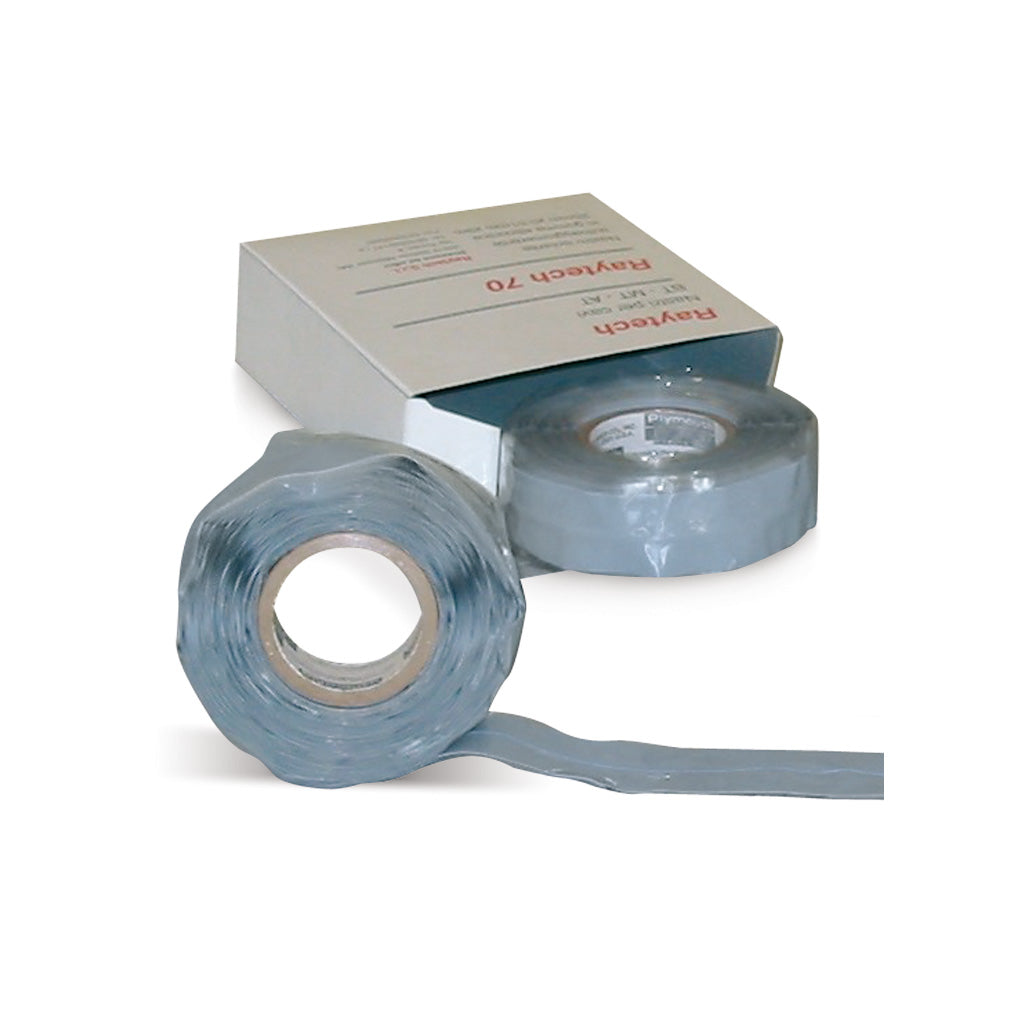

Rayecth 7-0 | Self-Bonding Silicone Rubber Tape-Raytech Gels

Raytech 7-0 | Self-Bonding Silicone Rubber Tape

Name: Raytech 7-0 | Self-Bonding Silicone Rubber Tape
Brand: Raytech Gels
Price: 48.89 USD
Availability: OutOfStock

Price

$48⁸⁹

Save $-48.89

Quantity

Fast Nationwide Shipping

Guaranteed Satisfaction

Carbon neutral

Secure payments

This self-amalgamating silicone rubber tape is used for covering medium and high voltage terminations on extruded cables up to Um 72 kV, because of its first-rate performance for electrical installations in damp or polluted environments, against corrosion, corona and against ageing. It is used as an insulation up to 180°C due to its excellent heat properties. It can be perfectly adapted to all the shapes to be covered.

Width: 25 mm
Thickness 0.51 mm
Length 9.1mm

Property

Elongation at break

Resistance to U.V.

Resistance to ozone

Working temperature maximum

Dielectric strength

Test method

ASTM-D-1000

ASTM-D-4325

ASTM-D-4388

ASTM-D-4325

Typical values

>500%

Positive

180°C

>35 kV/mm

ASTM-D-2148
MIL-I-46852A

Shipping information

If you have time-sensitive requirements, we recommend selecting a UPS service at checkout. UPS generally offers more consistent transit performance, while USPS transit times can vary.

Orders are processed within 1–2 business days, with most orders placed before 2 PM EST shipping the same day. We offer a full range of USPS and UPS shipping options, including expedited and next-day delivery for urgent requirements.

Product Selection Guide

Choose the Right Raytech Product

Use this guide to compare Raytech waterproof electrical protection products by application, serviceability, and installation method.

General dielectric gel

Magic Gel

Best for: general waterproof potting and electrical insulation.

Choose Magic Gel when you need a dielectric gel for filling an enclosure, junction box, or electrical connection while keeping future access possible.

IP68 System Re-enterable Low Viscosity

View Magic Gel

Reusable gel protection

Magic Power Gel

Best for: reusable waterproof protection.

Choose Magic Power Gel when future access and reusability matter. It is a strong option when the connection may need to be opened and resealed later.

IP68 System Re-enterable Reusable Self-Amalgamating

View Magic Power Gel

Gel-rubber protection

Techno Gelgum

Best for: vibration damping and mechanical hold.

Choose Techno Gelgum when the connection is exposed to movement, vibration, mechanical stress, or demanding submerged conditions. Even suitable for high depths under water.

IP68 System Re-enterable Gel-Rubber Vibration Damper High-Depth Use

View Techno Gelgum

Flexible rubber compound

Magic Rubber

Best for: stronger mechanical structure.

Choose Magic Rubber when you need more structure than a soft gel, but do not want to permanently encapsulate the connection with hard epoxy.

IP68 System Re-enterable Flexible Rubber Mechanical Support

View Magic Rubber

Fast-curing dielectric gel

Magic Gel Sprint

Best for: fast curing waterproof potting and electrical insulation.

Choose Magic Gel Sprint when you need a re-enterable dielectric gel with a faster curing time for quicker installations or faster return to service.

IP68 System Re-enterable Fast Cure Low Viscosity

View Magic Gel Sprint

Transparent / UV-resistant gel

Ray Gel

Best for: transparent or UV-resistant waterproof protection.

Choose Ray Gel when you need a low-viscosity dielectric gel with transparent or UV-resistant protection for electrical connections, junction boxes, or installations exposed to UV.

IP68 System Transparent UV Resistant Low Viscosity

View Ray Gel

Cartridge gel

Wonder Gel

Best for: overhead and hard-to-reach junction boxes.

Choose Wonder Gel when you need a ready-to-use cartridge gel for overhead, vertical, or hard-to-reach junction boxes where pouring is difficult or not practical.

IP68 Cartridge No Mixing Ready-to-Use

View Wonder Gel

Raytech prefilled gel box waterproof wire connector protection

Prefilled connector boxes

Prefilled Gel Boxes

Best for: wire connectors and terminal blocks.

Choose prefilled gel boxes when you want a ready-to-use solution for protecting wire connectors or terminal blocks without mixing, pouring, or curing.

IPX8 Prefilled No Mixing Ready-to-Use

View Gel Boxes
