PRE-FILLED GEL BOX FOR ELECTRICAL CONNECTORS

Gel Box Line – Pre-Filled Gel Boxes for Electrical Connectors

Protect the connector you already use from water and environmental exposure with an IPX8-tested, pre-filled gel enclosure. Fully submersible and suitable for underground use, Gel Box Line comes in five sizes to match the completed connection—no measuring, mixing or pouring.

Connector Not Included

Protection IPX8 officially tested
Connector Use your existing compatible connector
Installation Pre-filled — no mixing or pouring
Environment Fully submersible & underground use
Price
Regular price $1236
Regular price Sale price $1236
/
Gel Box Size and Pack Size
Secure checkout
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Shipping information

If you have time-sensitive requirements, we recommend selecting a UPS service at checkout. UPS generally offers more consistent transit performance, while USPS transit times can vary.

Orders are processed within 1–2 business days, with most orders placed before 2 PM EST shipping the same day. We offer a full range of USPS and UPS shipping options, including expedited and next-day delivery for urgent requirements.
Technical Data Sheet Specifications, ratings and installation data
View TDS

Swipe to explore →

Keep the Connector You Already Use

Connector sold separately.

Gel Box Line goes around the completed electrical connection rather than replacing the connector itself. Make the connection first, choose the Gel Box that fits it, and close it inside the pre-filled enclosure.

Start with your connector

How to Choose the Right Size

Start with the connector, not the wire gauge. Its physical size, conductor count, and the number of connectors you need to enclose determine which Gel Box fits.
Swipe steps on mobile →

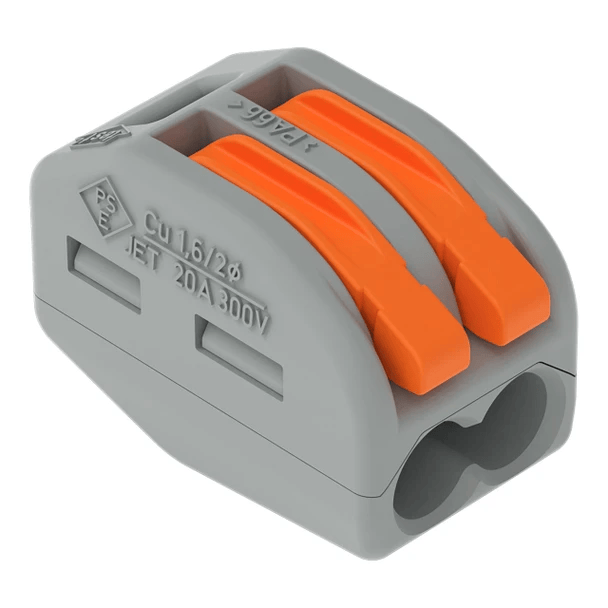

  1. Compact two-conductor connector
    01

    Identify Your Connector

    Match the connector body.

    Compact, terminal, or similar connector style
  2. First compact connector Second compact connector Third compact connector
    02

    Count What Needs to Fit

    Count the connectors and conductors.

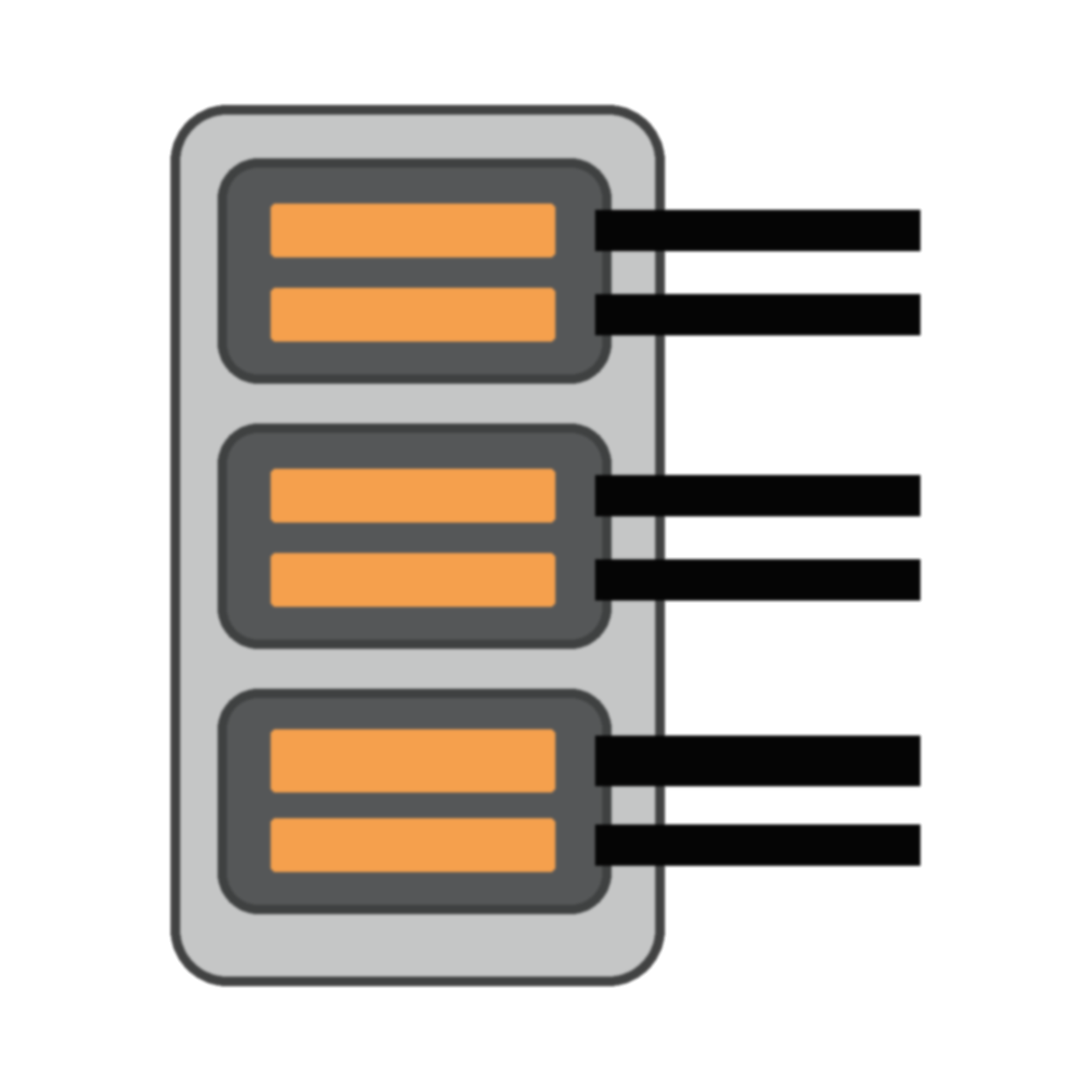

    3 connectors · 2 conductors each · 6 conductors total
  3. Comparison of 10 AWG, 12 AWG, and 14 AWG stranded copper wire sizes
    03

    Confirm Wire Size

    Check the wire size your connector accepts.

    12 AWG · 4 mm²

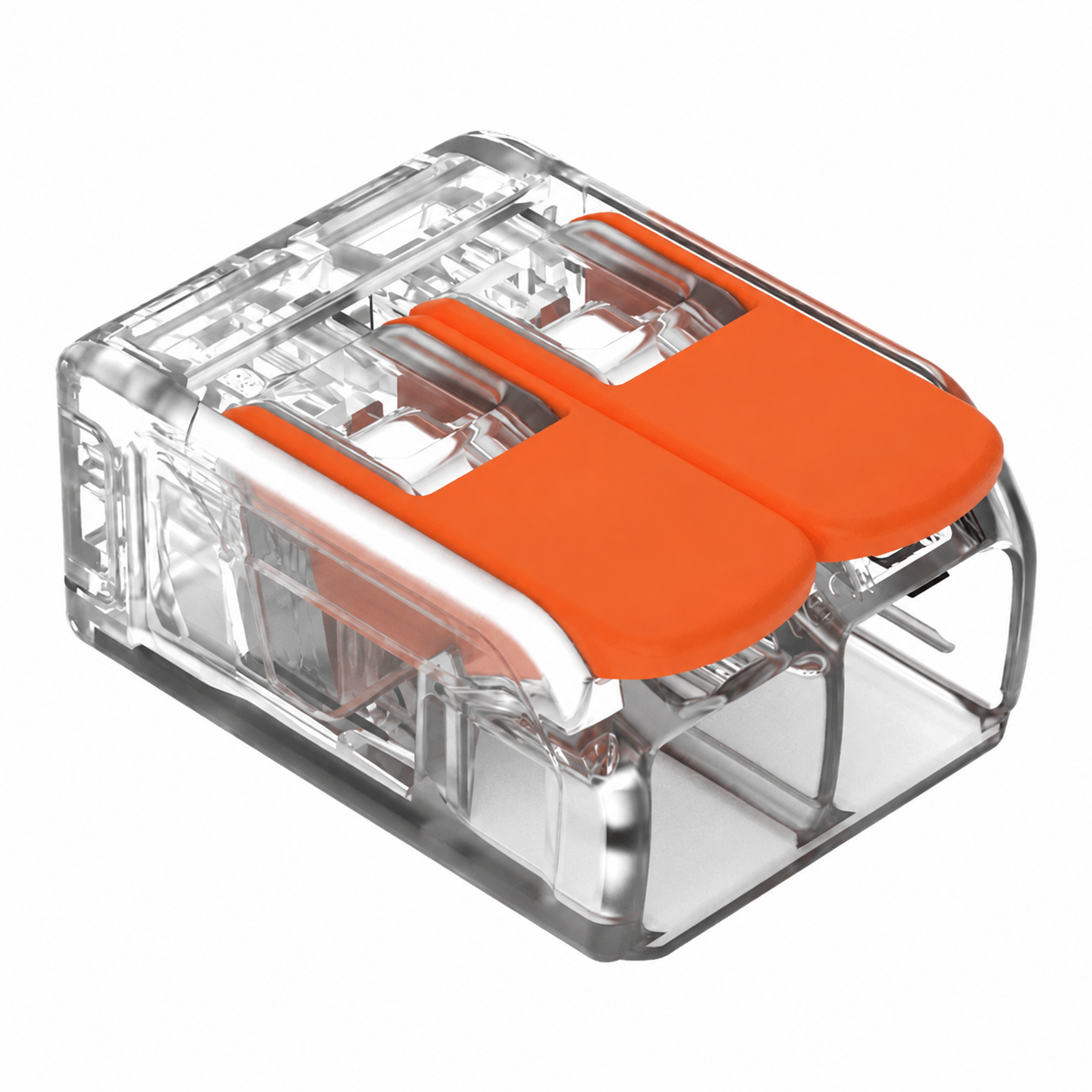

  4. Open Joule Gel Box First connector Second connector Third connector
    04

    Match the Arrangement

    Compare your connection to the fit examples below.

    Joule · 3 connectors · 2 conductors each · 12 AWG / 4 mm²

Why Wire Size Alone Isn’t Enough

Smaller compact connector body that accepts 12 AWG wire Smaller Connector Body
Both Accept
12 AWG

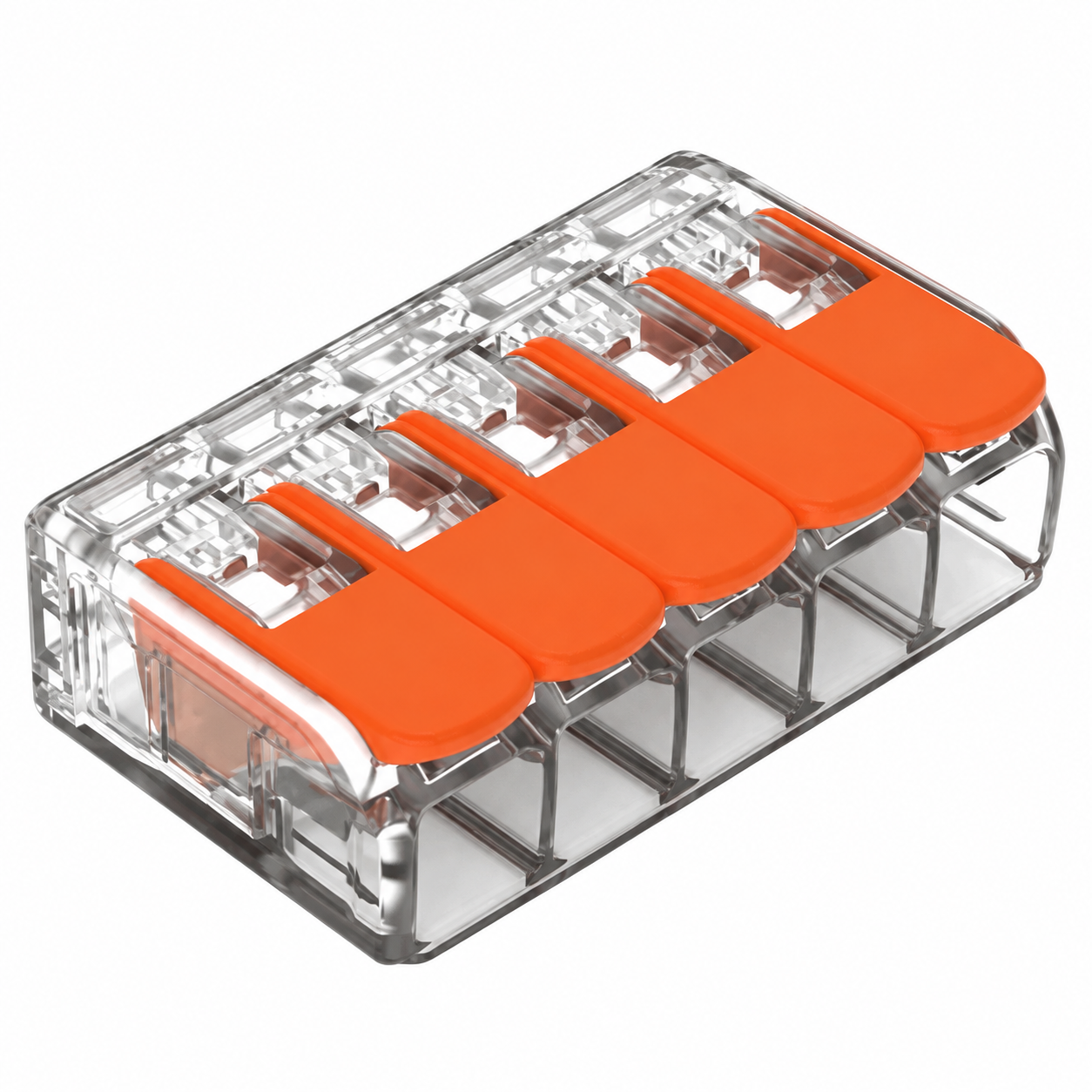

Larger connector body that accepts 12 AWG wire Larger Connector Body

Same wire size. Different connector size. Different space needed.

Connector Fit Guide

Choose by connector fit, not wire size alone. Match the connector style, conductor count, and quantity to the examples below. Similarly sized connectors may also fit.

Swipe to compare Gel Box sizes

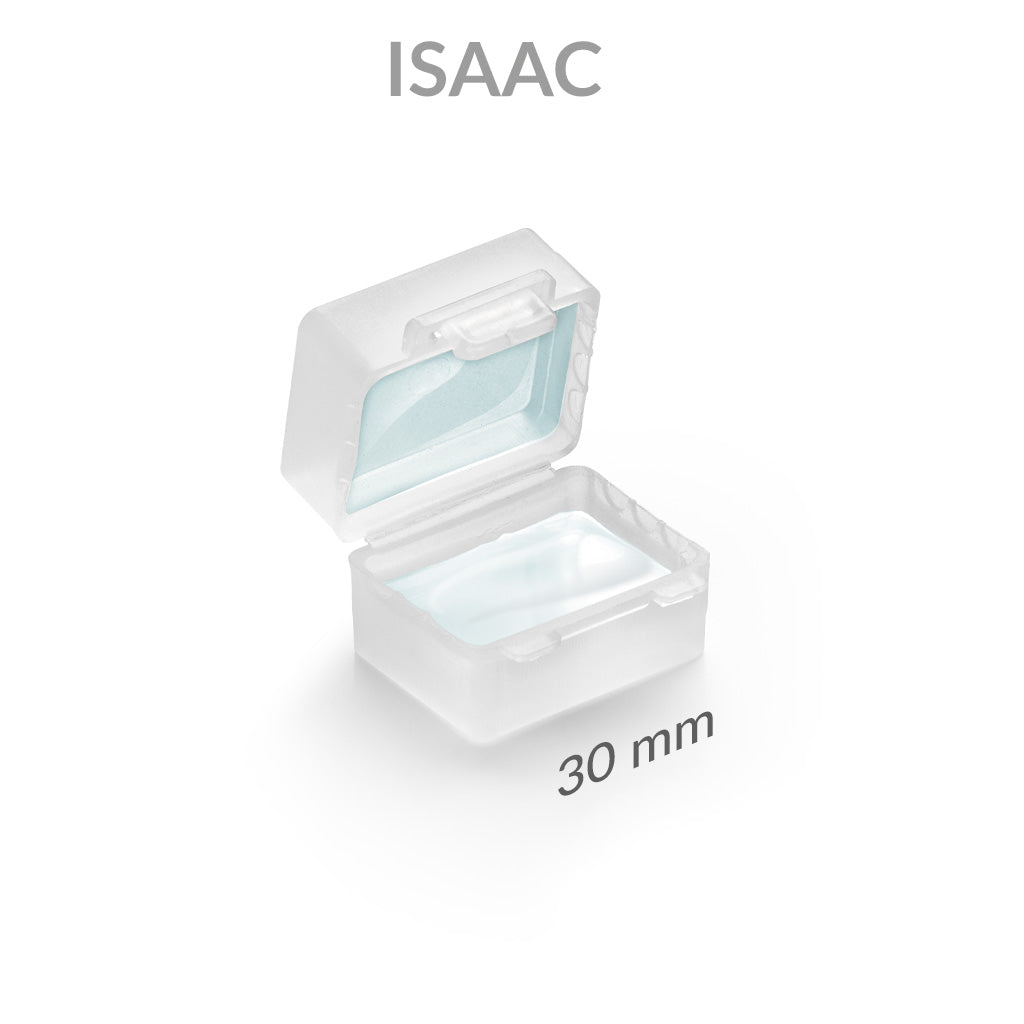

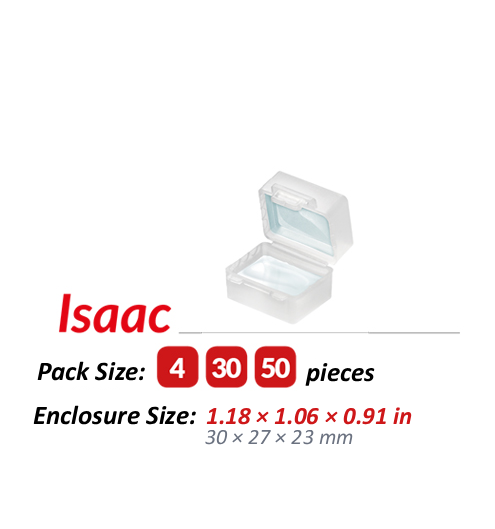

Isaac

1.18 × 1.06 × 0.91 in30 × 27 × 23 mm

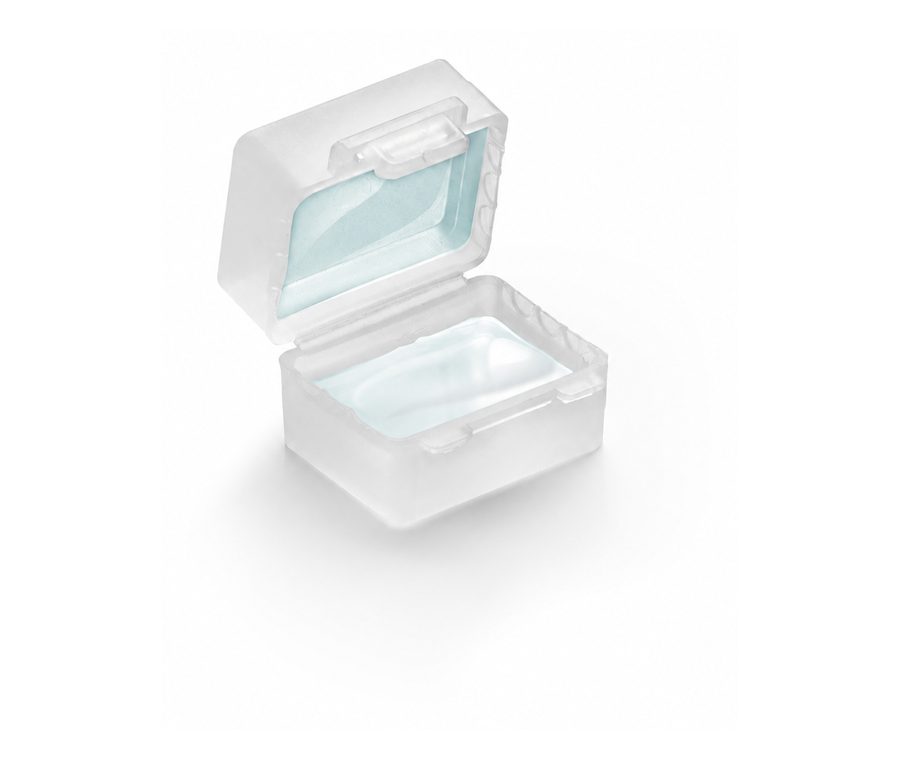

Open Isaac Gel Box

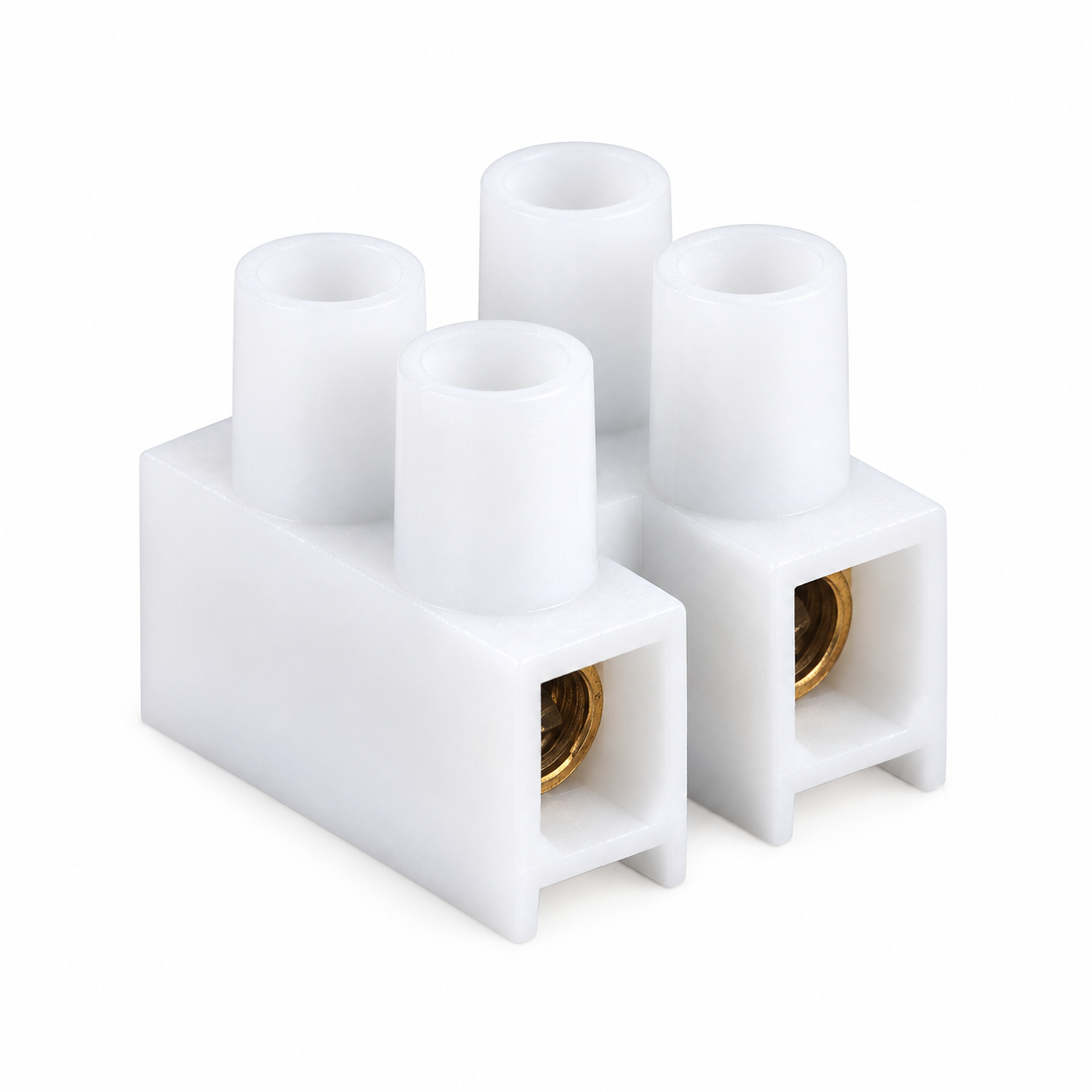

White two-position terminal connector
2-Conductor Terminal Connector14 AWG · 2.5 mm²
Gray two-position lever connector
2-Conductor Compact Connector14 AWG · 2.5 mm²

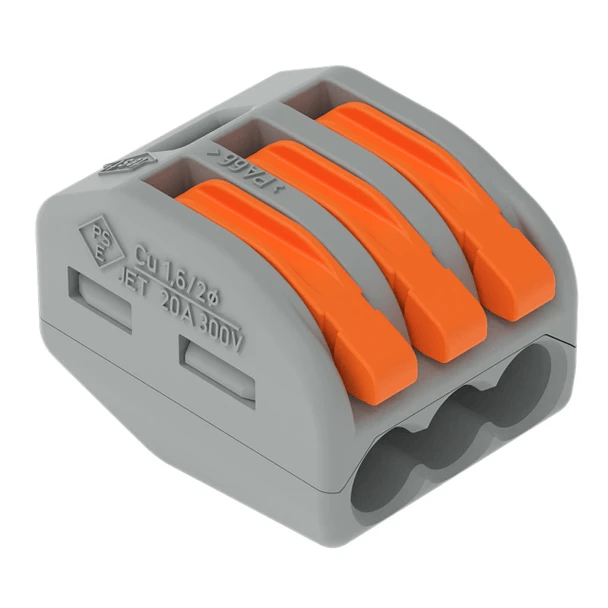

Gray three-position lever connector
3-Conductor Compact Connector14 AWG · 2.5 mm²
Clear two-position lever connector
2-Conductor Compact Connector12 AWG · 4 mm²

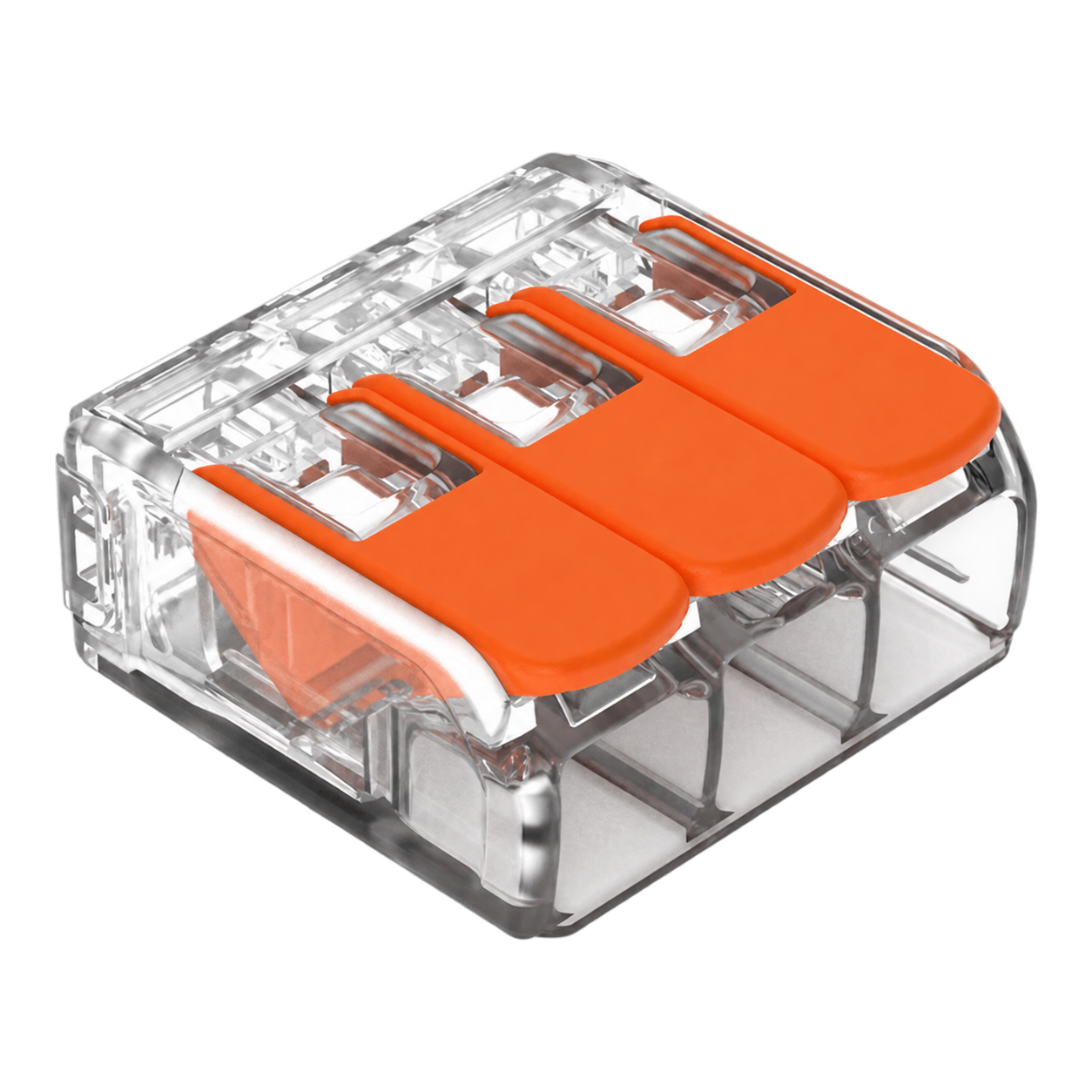

Clear three-position lever connector
3-Conductor Compact Connector12 AWG · 4 mm²

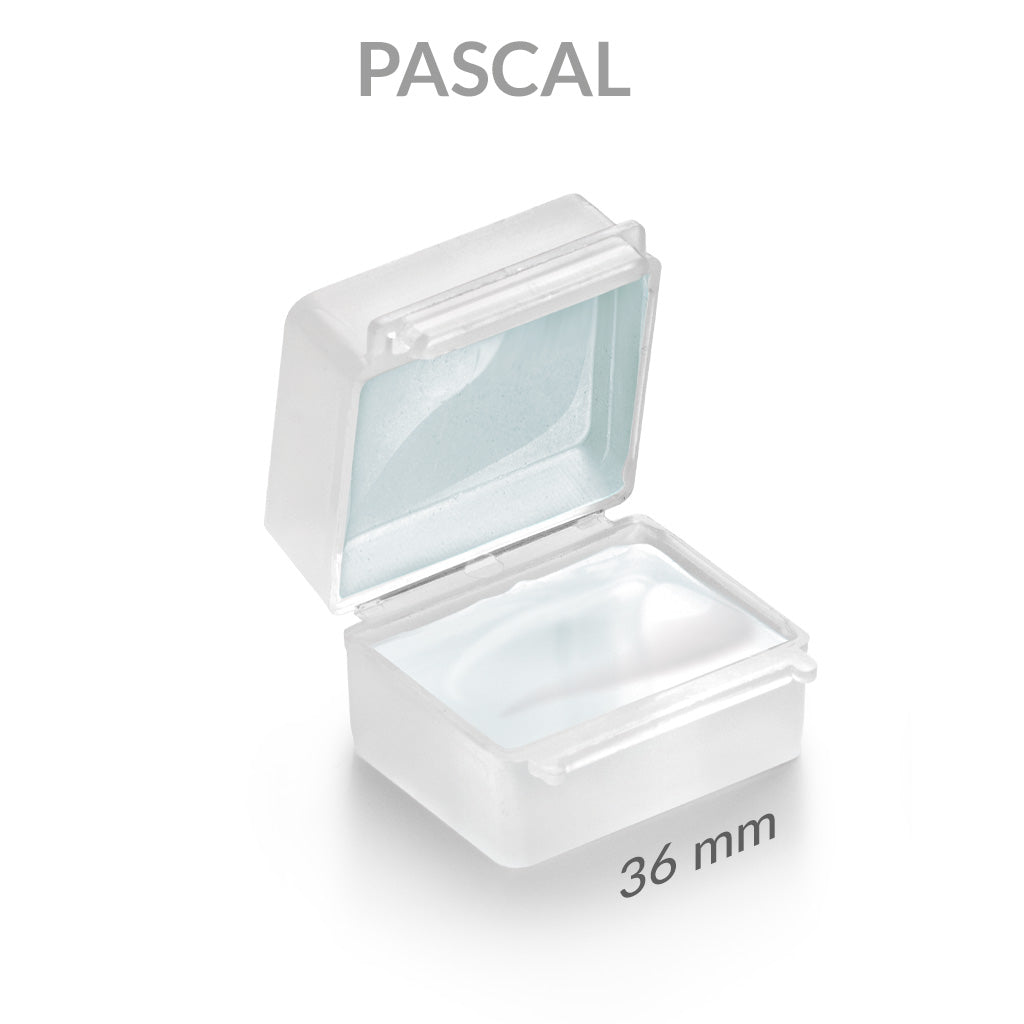

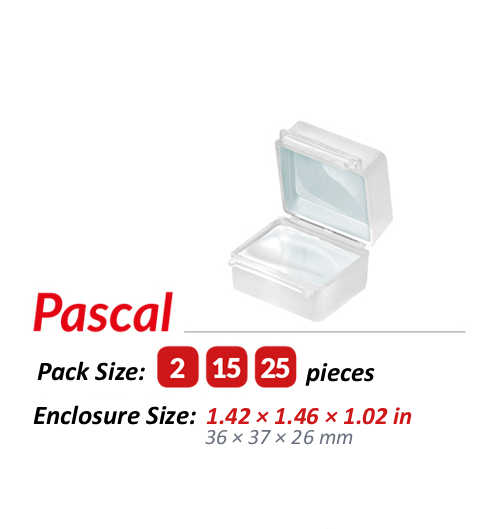

Pascal

1.42 × 1.46 × 1.02 in36 × 37 × 26 mm

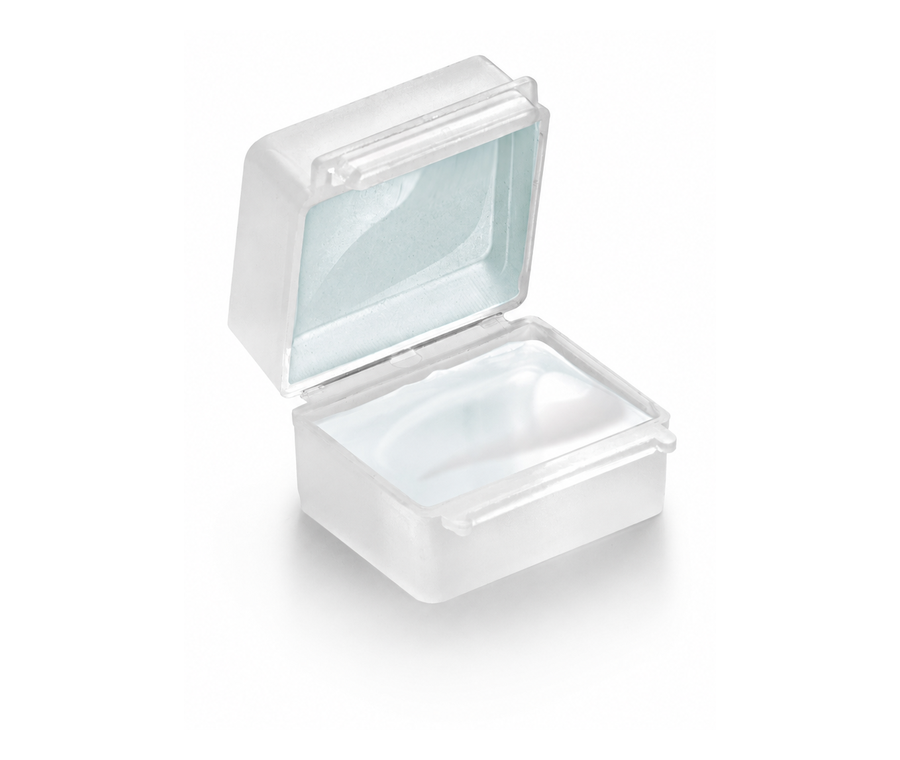

Open Pascal Gel Box
White two-position terminal connector
2-Conductor Terminal Connector12 AWG · 4 mm²
Three-position white terminal connector
3-Conductor Terminal Connector14 AWG · 2.5 mm²

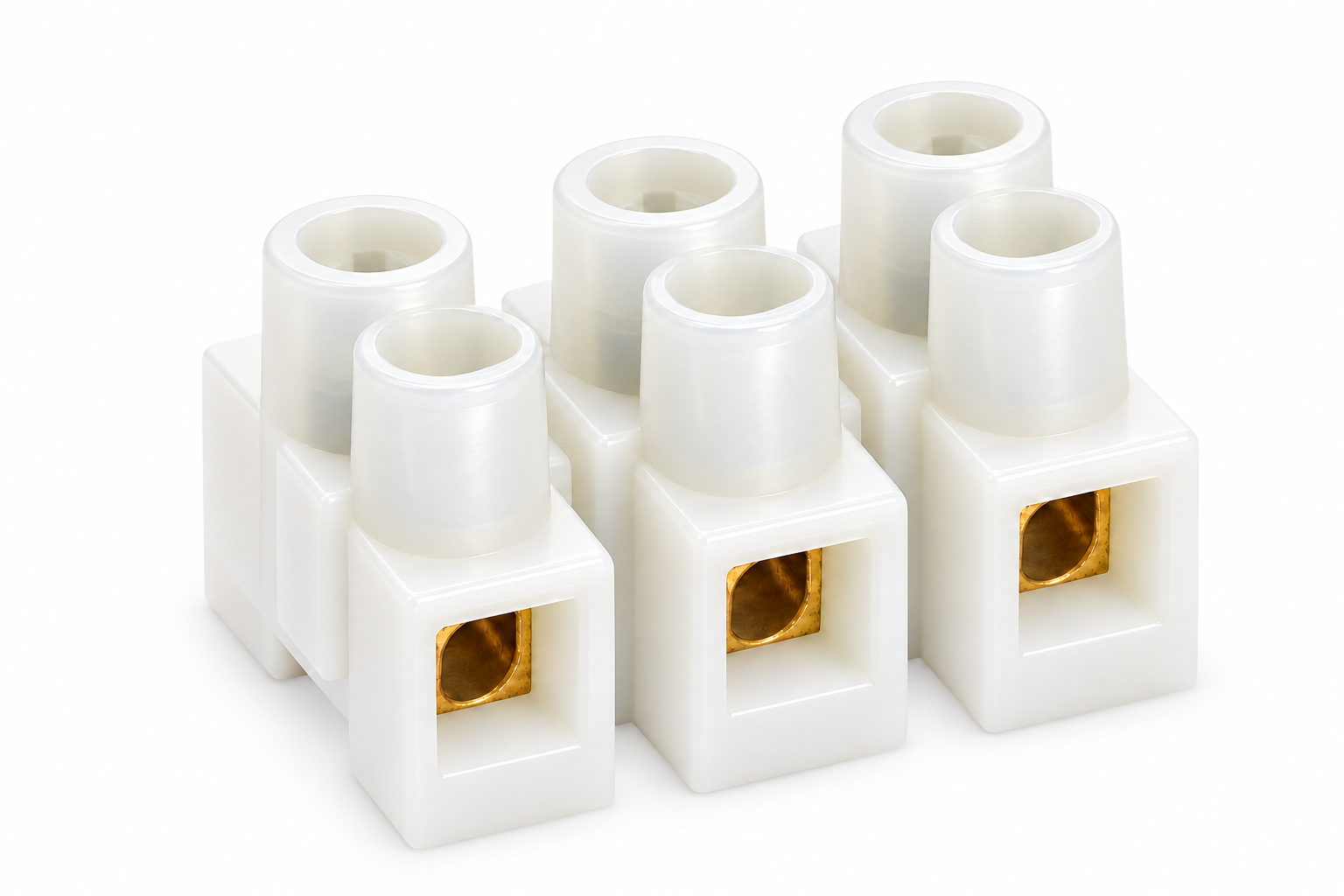

Three-position clear terminal connector
3-Conductor Terminal Connector16 AWG · 1.5 mm²
Gray two-position lever connectorSecond gray two-position lever connector
2 Compact Connectors2 conductors each · 14 AWG · 2.5 mm²
Gray five-position lever connector
5-Conductor Compact Connector14 AWG · 2.5 mm²

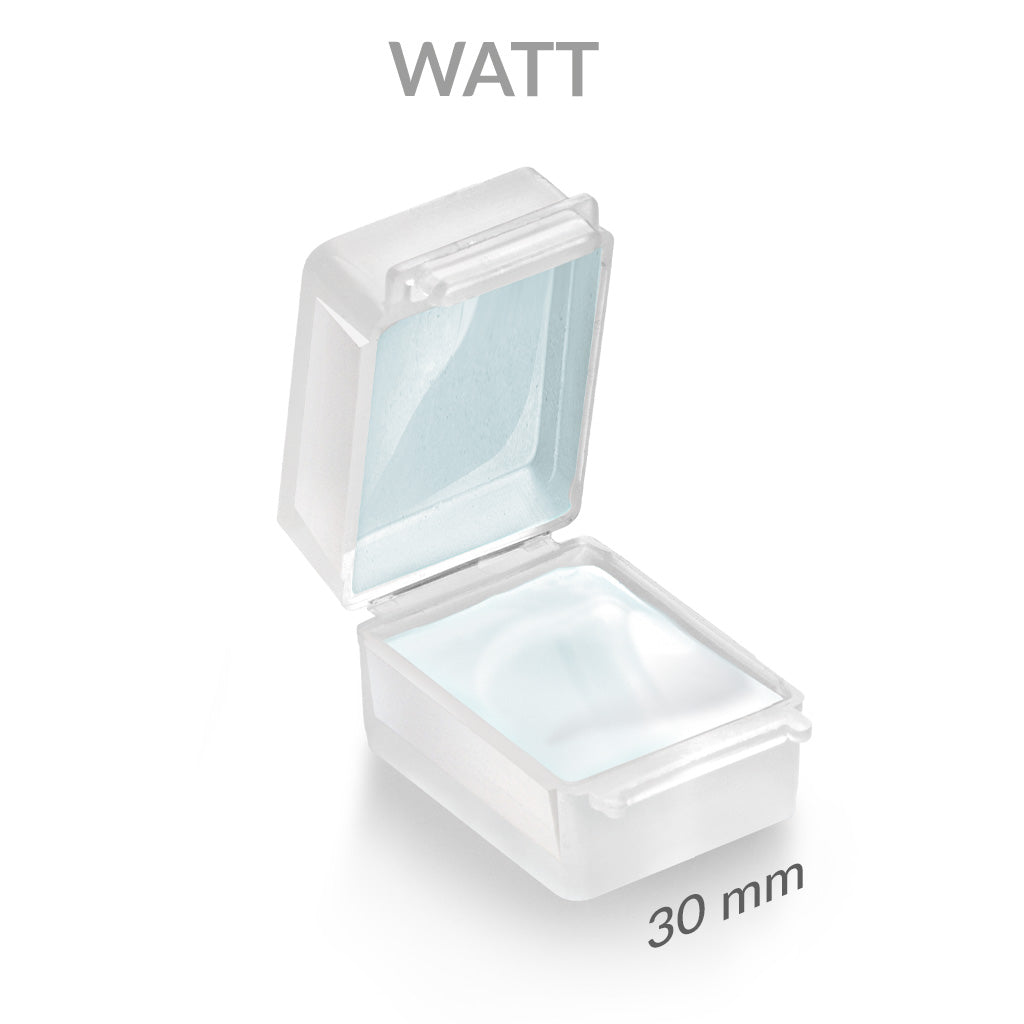

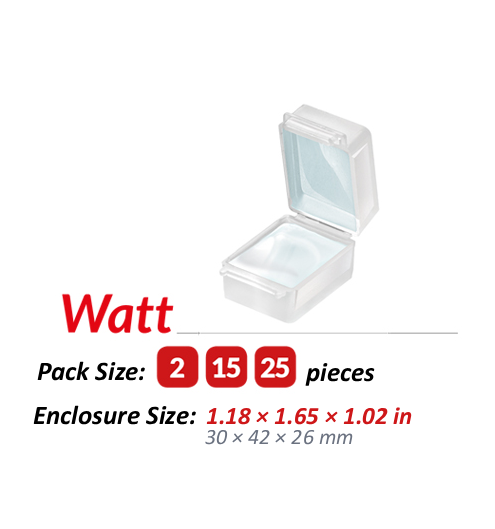

Watt

1.18 × 1.65 × 1.02 in30 × 42 × 26 mm

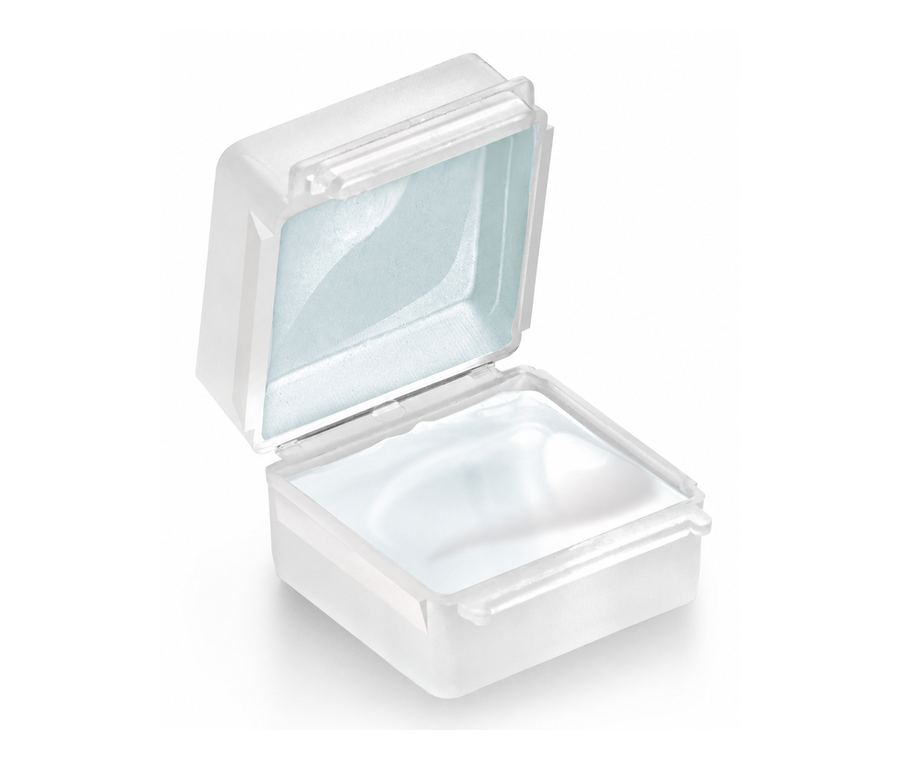

Open Watt Gel Box
Three-position clear terminal connector
3-Conductor Terminal Connector14 AWG · 2.5 mm²
Gray two-position lever connectorSecond gray two-position lever connector
2 Compact Connectors2 conductors each · 14 AWG · 2.5 mm²

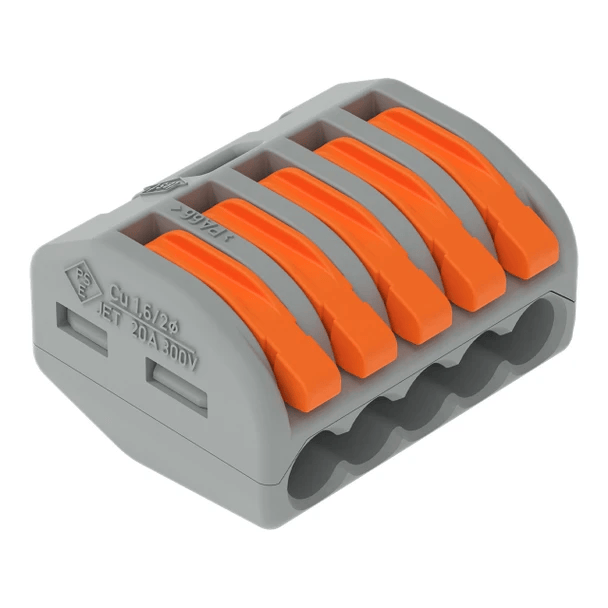

Gray five-position lever connector
5-Conductor Compact Connector14 AWG · 2.5 mm²
Clear two-position lever connectorSecond clear two-position lever connector
2 Compact Connectors2 conductors each · 12 AWG · 4 mm²
Clear five-position lever connector
5-Conductor Compact Connector12 AWG · 4 mm²

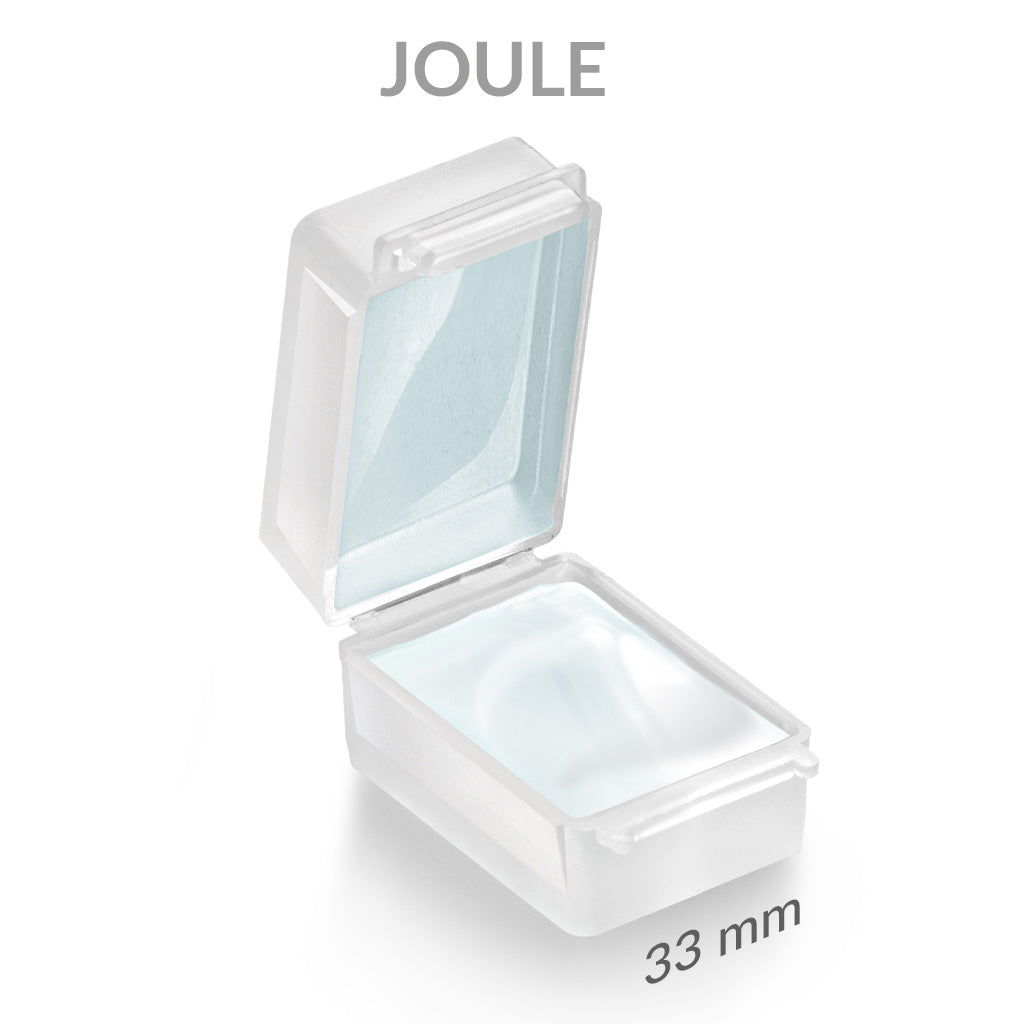

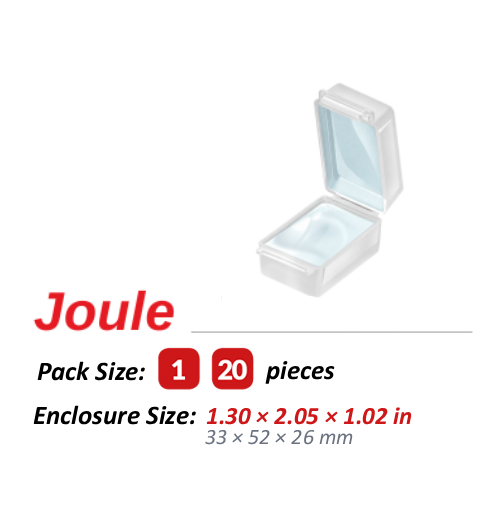

Joule

1.30 × 2.05 × 1.02 in33 × 52 × 26 mm

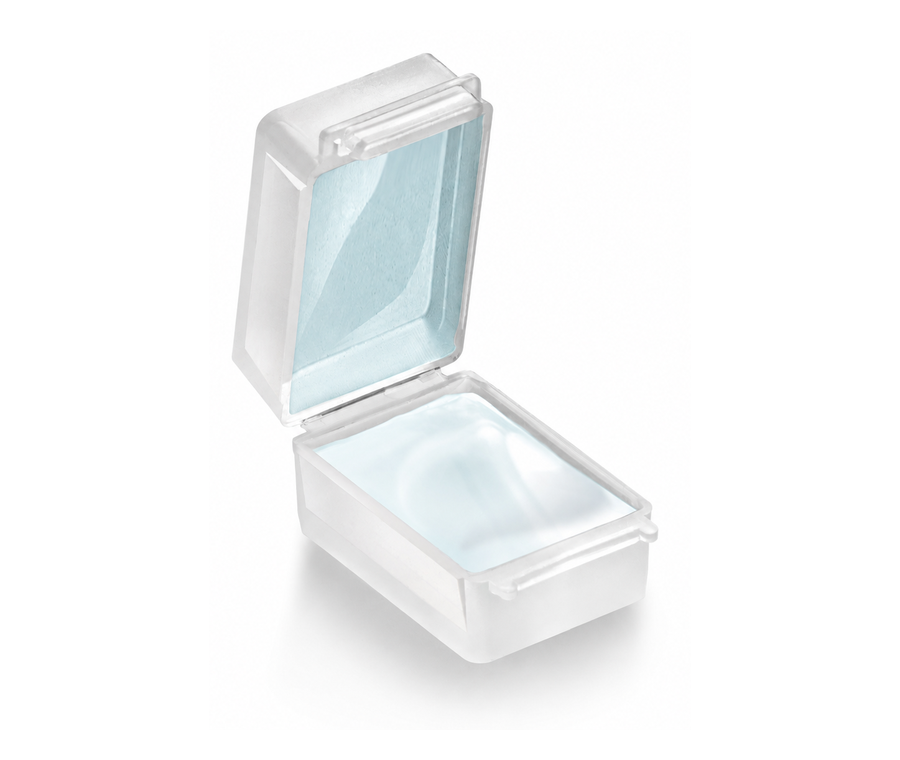

Open Joule Gel Box
Gray two-position lever connectorSecond gray two-position lever connectorThird gray two-position lever connector
3 Compact Connectors2 conductors each · 14 AWG · 2.5 mm²
Clear two-position lever connectorSecond clear two-position lever connectorThird clear two-position lever connector
3 Compact Connectors2 conductors each · 12 AWG · 4 mm²

Kelvin

2.05 × 2.09 × 1.14 in52 × 53 × 29 mm

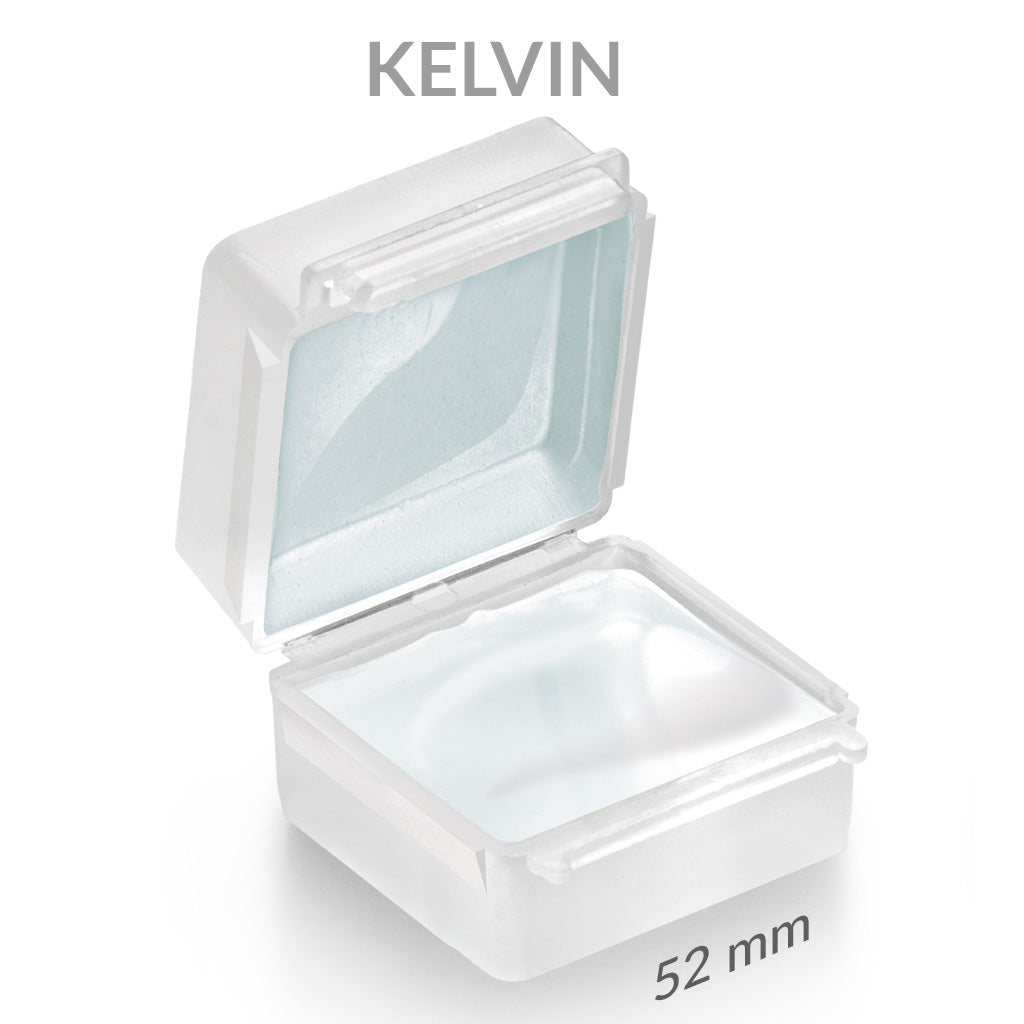

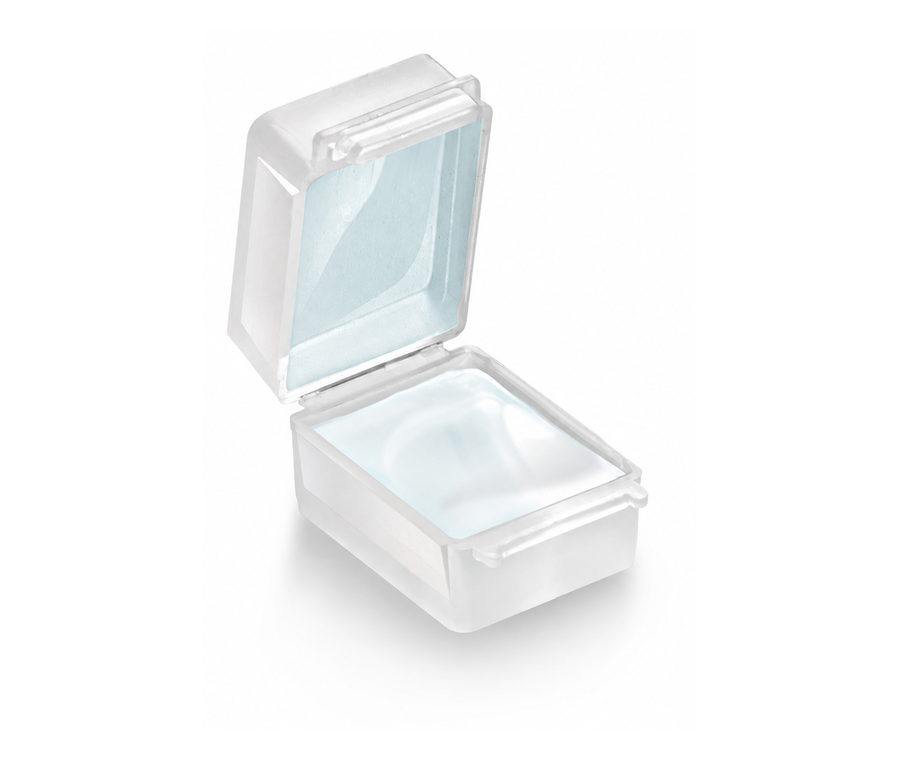

Open Kelvin Gel Box
Three-position white terminal connector
3-Conductor Terminal Connector10 AWG · 6 mm²

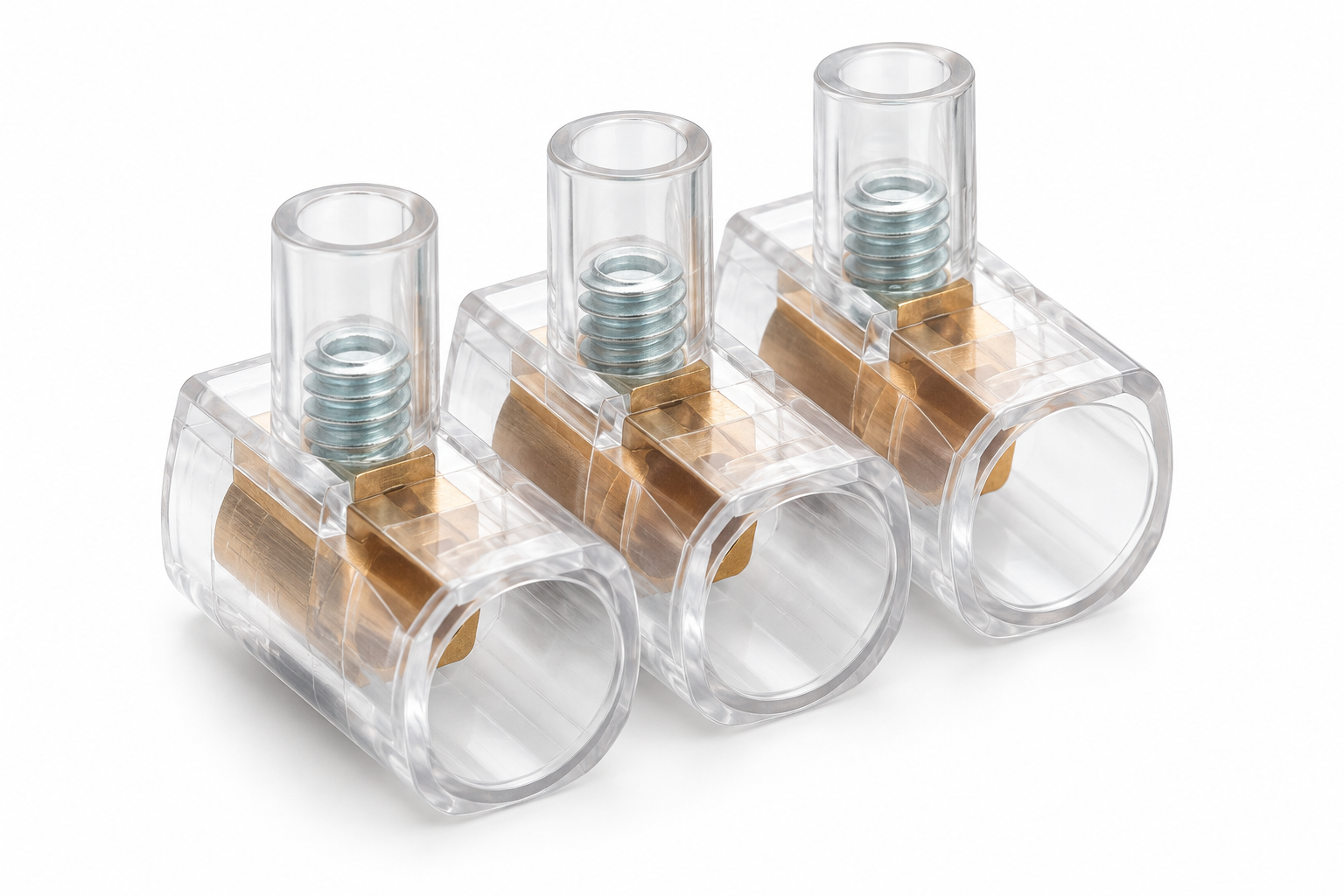

Three-position clear terminal connector
3-Conductor Terminal Connector10 AWG · 6 mm²
AWG sizes are U.S. cross-references to the metric conductor sizes shown. Always verify the wire range of the connector being used.
Model-by-model details

See What Fits in Each Size

Choose a model to see its enclosure size, pack options, and largest connector configurations.
Choose a Gel Box

Swipe to explore sizes

Isaac Gel Box: product photo, pack sizes, and enclosure size
Isaac · Connector Fit

Largest Connector Configurations

See the largest connector arrangements for this Gel Box.

Up to 2 Conductors Terminal Connector
Terminal ConnectorUp to 2 Conductors14 AWG · 2.5 mm²
Up to 3 Conductors Compact Connector
Compact ConnectorUp to 3 Conductors12 AWG · 4 mm²
Up to 2 Conductors Terminal Connector
Terminal ConnectorUp to 2 Conductors14 AWG · 2.5 mm²
Connector fit depends on the completed assembly. Verify your connector dimensions before ordering.
No mixing · no pouring · no cure time

Protect the Connection in Three Simple Steps

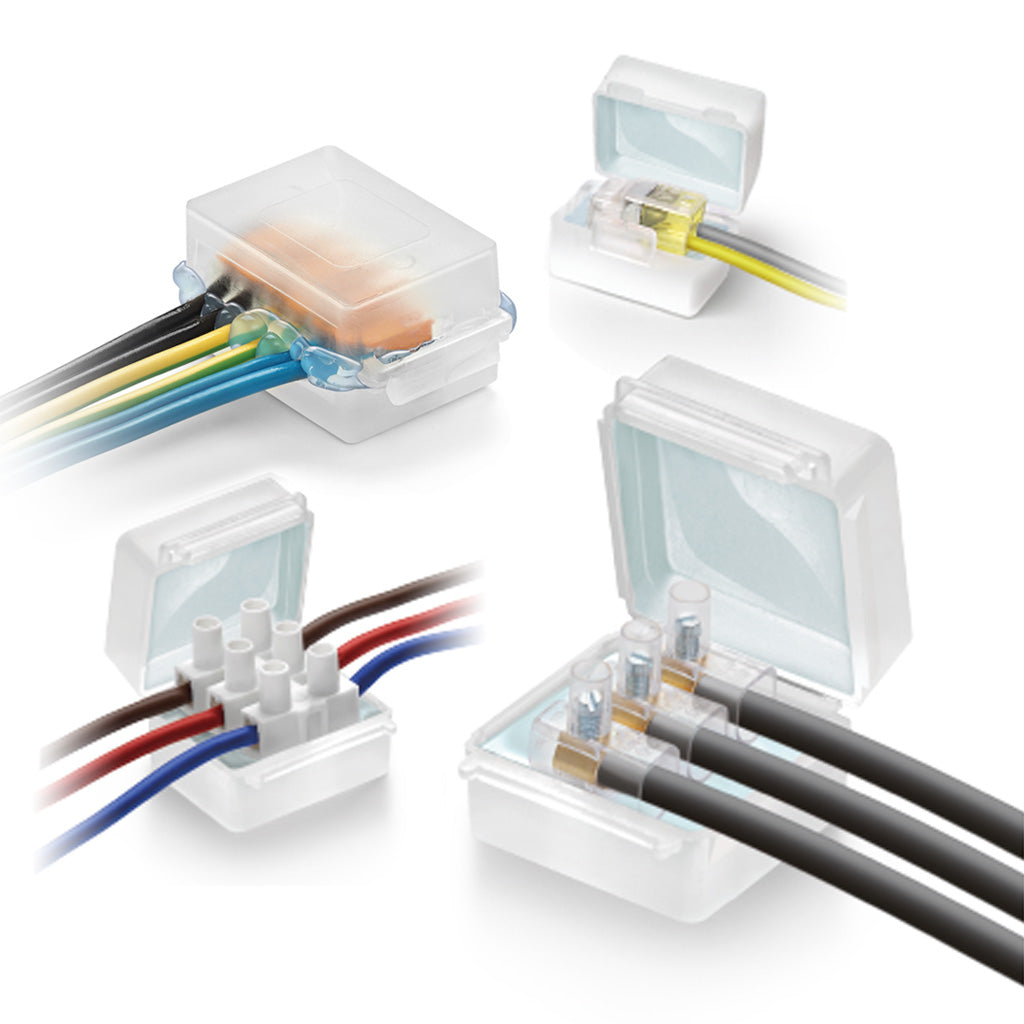

Gel Box Line arrives pre-filled. Place the completed connection inside, route the wires through the flexible exits, and press the enclosure closed.

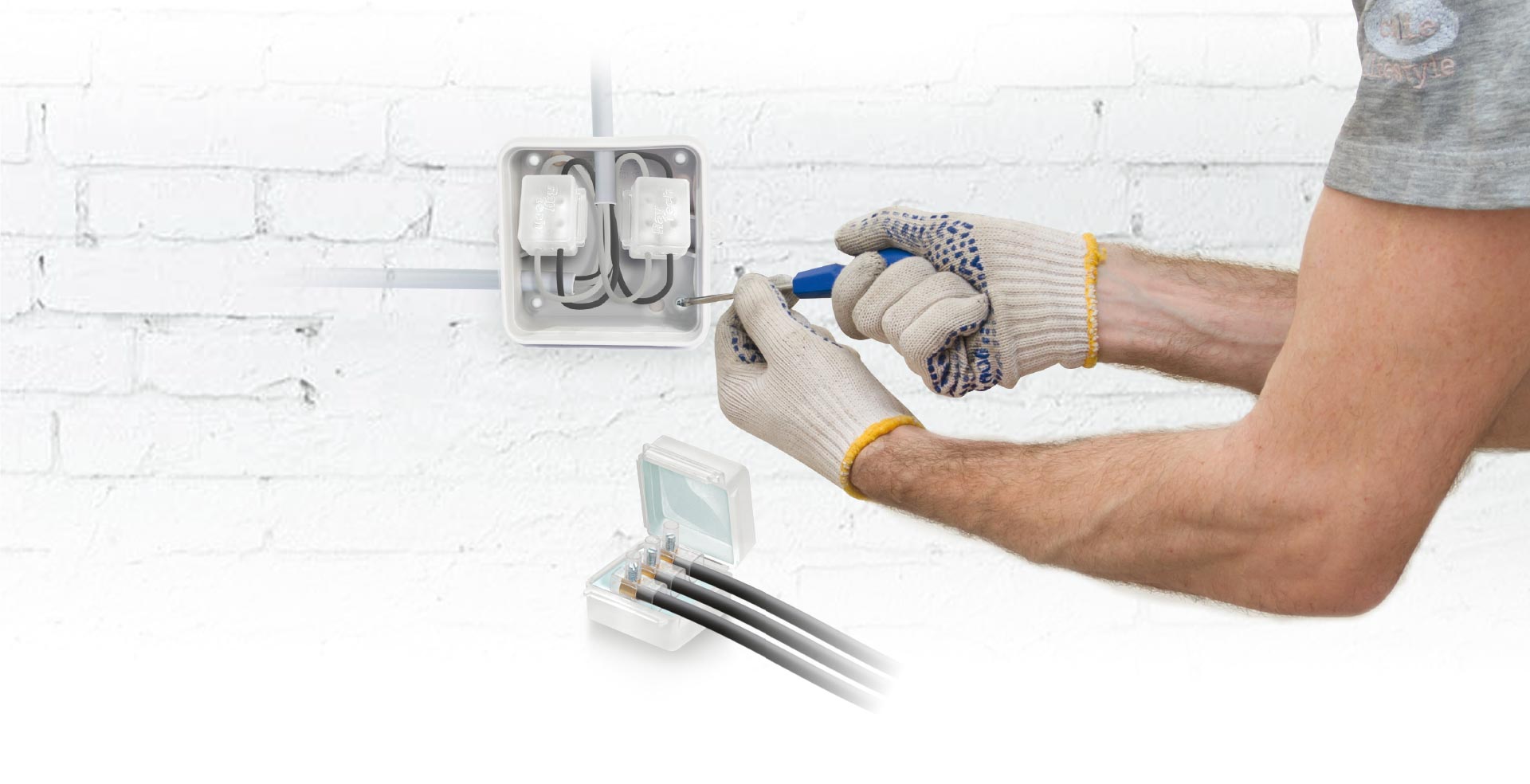

Gel Box enclosures protecting electrical connections
Protection without rebuilding the connectionThe connector stays inside the enclosure and remains accessible.
  1. Make the connection

    Complete and inspect your compatible electrical connector first.

    Connector stays
  2. Place it in the gel

    Center the finished assembly in the correctly sized pre-filled box.

    Ready filled
  3. Close the enclosure

    Close the enclosure fully and confirm the wires are properly seated in the exits.

    Immediate protection
Built beyond the junction box

Protection Where Connections Get Wet

For outdoor, underground and fully submerged installations where ordinary indoor connectors need a purpose-built protective enclosure.
IPX8 Officially tested
Fully submersible For completed installations
−40°C to +50°C Installation temperature
90°C Working temperature

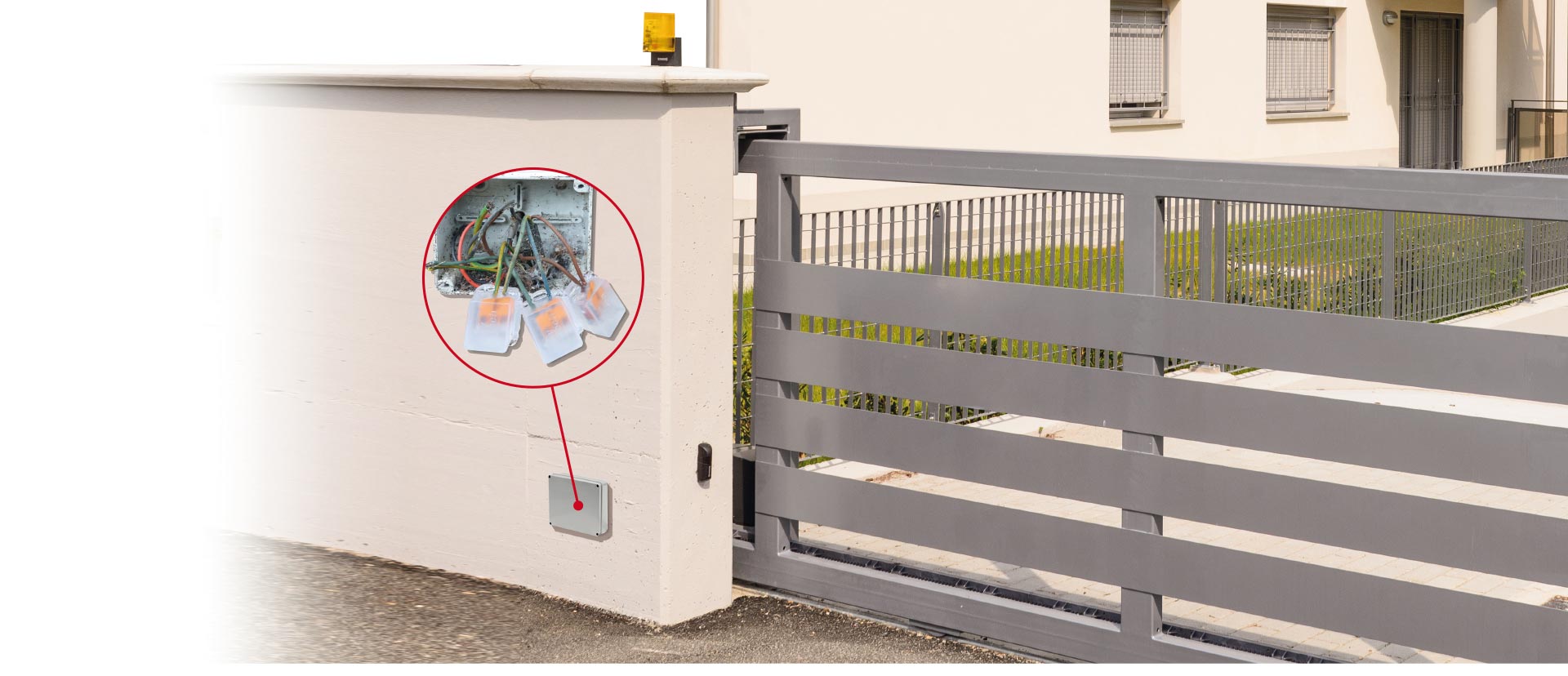

Gel Box Line enclosure protecting a completed electrical connection at an outdoor gate installation

Technical values apply to the complete Gel Box Line accessory. Follow the installation instructions for the connector and Gel Box.

Key Benefits

Pre-Filled — No Mixing or Pouring

Arrives ready to use, eliminating measuring, mixing and pouring before installation.

Soft Gel Surrounds the Connection

0 Shore 00 gel hardness allows the gel to conform around the connector and conductors.

High Electrical Insulation

Dielectric strength greater than 20 kV/mm.

Very Low Water Absorption

Less than 0.05% after 30 days of immersion.

Use the Connector You Already Have

Protect the completed connection without switching to a proprietary connector system.

WHERE GEL BOX LINE WORKS

Built for Connections Exposed to Water

Use Gel Box Line when a completed electrical connection needs a compact, pre-filled enclosure in wet, underground or fully submerged installations.

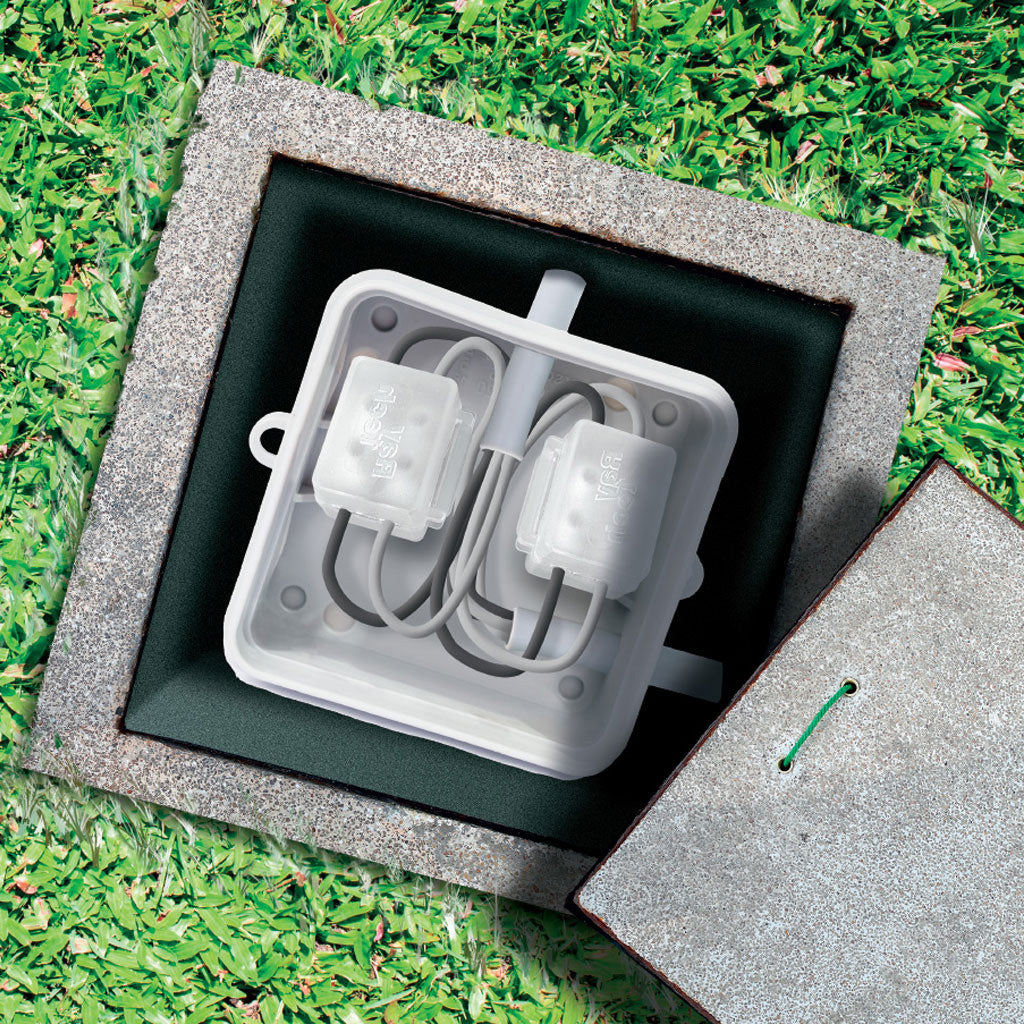

A Raytech Gel Box Line enclosure installed inside an underground splice box, surrounded by grass
Protect the Completed ConnectionThe pre-filled enclosure surrounds the connector you already use with insulating gel while keeping the finished connection compact and contained.

Wet & Water-Exposed Connections

For completed electrical connections that may be exposed to water or persistent moisture.

Underground Installations

For completed electrical connections installed below ground where the finished connection needs added environmental protection.

Fully Submerged Connections

For installations where the closed Gel Box may remain fully submerged around the completed connection.

Residential, Commercial & Industrial

For completed electrical connections in buildings, equipment and industrial installations.

Technical Specifications

Protection & Environment
Product type Pre-filled protective enclosure for electrical connectors
Protection rating IPX8 (officially tested)
Submersible Yes — fully submersible
Underground use Yes
Suitable wire types Rigid or flexible insulated wires
Thermal
Finished accessory working temperature 90°C / 194°F
Installation temperature -40°C to +50°C / -40°F to +122°F
Gel material continuous working temperature -60°C to +150°C / -76°F to +302°F
Gel thermal conductivity Approx. 0.2 W/mK
Electrical
Gel dielectric strength Greater than 20 kV/mm
Electrical performance CEI EN 50393 as applicable (tested under water head of the accessory installed in a box); Class 2 per CEI 64-8
Housing / Enclosure
Housing Transparent polypropylene-based enclosure
G4J Gel / Material
Gel Raytech G4J polymeric cross-linked gel, chemically inert, non-toxic
Gel hardness 0 Shore 00 (extremely soft)
Gel density 0.97 g/cm³
Water absorption Less than 0.05% after 30 days immersion
Gel flammability classification UL 94 HB
Environmental resistance Salt water and chlorine environments have no adverse effect on the cross-linked gel; inorganic acids in water solutions showed no visible effects
Chemicals to avoid Strong or concentrated acids or alkalis, especially at elevated temperature; permanent immersion in strong/pure hydrocarbons
Compliance
UL status G4J gel is a UL Recognized Component.

Which Raytech Connection System Should I Choose?

Already have your connector? Choose Gel Box Line. If you want the connector supplied or integrated with the enclosure, compare the other Raytech systems below.

Swipe to compare systems

Product Connector Main reason to choose it
Gel Box Line Use your own Multiple enclosure sizes designed around commonly used connectors
Happy Use your own Three-entry layout gives more routing/configuration flexibility
Happy Joint Included Complete gel-box + connector solution for straight/branch connections
Nano Joint Included Compact complete connection when installation space matters
Super Block Integrated lever connector Make the electrical connection directly inside the gel enclosure
Bravo Integrated terminal block Integrated connection architecture with larger-conductor capability

Technical Resources

Gel Box Line Technical Data Sheet PDF
View PDF

Raytech Certifications & Laboratory Recognition

IQNET Certification
View
DEKRA Certification
View
Bureau Veritas Certification
View
IMQ Testing Laboratory Recognition
View

Gel Box Line FAQ

What is a pre-filled gel box?

A pre-filled gel box is a protective enclosure that surrounds a completed electrical connection with insulating gel. Gel Box Line arrives ready filled, so you can protect your existing compatible connector without measuring, mixing or pouring gel.
Does Gel Box Line include the wire connector?

No. Gel Box Line is the pre-filled protective enclosure; the connector is sold separately. Make the electrical connection first, then choose the Gel Box that fits around the completed assembly. If you need the connector included or integrated, compare the other connection systems below.
How do I choose the right Gel Box size?

Start with the completed connector, not the wire gauge. Match the connector body, conductor count and number of connectors to the Connector Fit Guide, then select the enclosure that matches the completed arrangement. The five Gel Box sizes are Isaac, Pascal, Watt, Joule and Kelvin.
What wire types and sizes can I use?

Gel Box Line is suitable for rigid or flexible insulated wires. The electrical connector determines the allowable wire size; the examples on this page span 10 to 16 AWG depending on the connector body and arrangement. Do not select the Gel Box by AWG alone.
Can Gel Box Line be used underground or fully submerged?

Yes. Gel Box Line is suitable for underground use and is fully submersible when correctly installed. The completed accessory is IPX8 officially tested.
Does the gel harden after installation?

No. The G4J gel is extremely soft at 0 Shore 00 and conforms around the connector and conductors instead of curing into a rigid encapsulant.
Can I use a WAGO connector inside Gel Box Line?

Gel Box Line is designed around commonly used connector bodies, including compact lever-style formats. For WAGO or any other connector brand, fit depends on the exact completed connector body and arrangement. Compare the assembled connector to the Connector Fit Guide before ordering.
